Гибкий шланг для воздуха TPR

для сжатого воздухаиз термопластикаиз гальванизированной стали

Rotating quick coupling fittings
Quick coupling fittings, composed of a jack with hose end connector with male threading, guarantee quick and reliable connection. It is secured by a ball ring with a thrust spring, while a nitrile rubber seal guarantees a perfect vacuum seal. Their design allows free rotation at low speed and quick coupling or uncoupling by means of the knurled nut. As they are not self-retaining, they ensure a full suction passage, optimising the flow rate of the vacuum pumps. Made entirely of brass, they are available in different sizes to suit various applications.

• Product codes: RR3/8
• RR1/2
• RR3/4
• RR1
• RR11/4
• RR11/2
• RRF3/8
• RRF1/2
• RRF3/4
• RRF1
• RRF11/2
• RRFF3/8
• RRFF1/2
• RRFF3/4
• RRFF1
• RRFF11/2

Fittings, nylon seals and hoses
The fittings described on this page are particularly suitable for connecting vacuum cup holders to their manifolds and in all those cases that require a connection to vacuum sources via smooth flexible hoses with internal diameters of 4, 6 and 9 mm, which is the maximum allowed for a vacuum hose with no internal reinforcement. These are semi-rapid fittings. The hose is fixed by manually screwing the reeded bush with no need for keys. The threaded connections are male or female, according to the requirements. The range is completed by L and T-type fittings and caps with O-rings. The fittings are supplied complete with nylon seals.

• Product codes: RMM5
• RM1/8
• RM1/4
• RM3/8
• RF1/8
• RF1/4
• RF3/8
• GNM5
• GN1/8
• GN1/4
• GN3/8
• GN1/2
• RLM5
• RL1/8
• RL1/4
• RL3/8
• RTM5
• RT1/8
• RT1/4
• RT3/8
• TPL2
• TPL4
• TPL6
• TPL8
• TPL9

Compressed air and vacuum flexible hoses and relative fittings

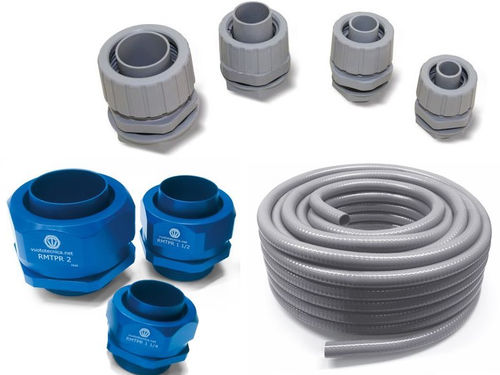

TPR flexible hoses are specially designed for vacuum and are composed of a single piece with plastic insulation and self-extinguishing materials, including the hose reinforcement core. They offer excellent flexibility, minimal bending radius and are very light while highly resistant to crushing. Their smooth inside reduces pressure losses. They have high resistance to abrasion, weather agents and most chemical products. A line of RMTPR/RTPR fittings for TPR hoses is available: RTPR fittings from 3/8” to 1” are made of self-extinguishing PVC; RMTPR in anodised aluminium. Fittings are sturdy and provide a vacuum seal; they eliminate hose clamps and speed up connections. Hoses can be used in mobile laying/cable chains if bending radius specifications are met.

• Product codes: TPR3/8
• TPR1/2
• TPR3/4
• TPR1
• TPR11/4
• TPR11/2
• TPR2
• TPR3
• RTPR3/8
• RTPR1/2
• RTPR3/4
• RTPR1
• RMTPR11/4
• RMTPR11/2
• RMTPR2
• RMTPR3

Hose ends
Hose ends are traditional barbed nickel-plated and brass fittings. They are suited for connecting smooth or reinforced flexible hoses with an internal diameter up to 76 mm.

• Product codes: RS1/4
• RS3/8
• RS1/2
• RS3/4
• RS1
• RS11/4
• RS11/2
• RS2
• RS3

Adapters and caps
Standard adapters and caps offer different assembly options. Galvanised steel or brass adapters screwed onto standard vacuum cup support connections can vary threads from gas to metric or vice-versa, from male to female or vice-versa, and can increase or decrease threaded diameters. The range includes numerous adapter/cap references.

• Product codes: 0008130
• 0008131
• 0008230
• 0008254
• 0008255
• 0008258
• 0008129
• 0008296
• 0008297
• 000854
• 0008251
• 0008252
• 0015291
• 001144
• 001106
• 001833
• 0015273
• 0008215
• 0008216
• 0008217
• 0008218
• 0008219
• 0008220
• 0008221
• 0008222
• 0008223
• 0008224
• 0008225
• 0008226
• 0008227
• 0008228

Gas - NPT adapters
Adapters allow using NPT threaded fittings on vacuum components that originally have gas threading (vacuum cup supports, valves, solenoid valves, filters, etc.).

• Product codes: 0008259
• 0008260
• 0008261
• 0008262
• 0008263
• 0008264
• 0008265
• 0008266
• 0008267
• 0008268
• 0008269
• 0008270
• 0008271
• 0008272
• 0008273
• 0008274
• 0008275
• 0008276

Caractéristiques / spécifications techniques

• Materials: brass (rotating quick couplings, adapters), nickel-plated brass (hose ends), galvanised steel options, anodised aluminium for some fittings, nylon seals supplied with fittings, nitrile rubber seals for vacuum sealing.
• Hose types: smooth flexible hoses (ID 4, 6, 9 mm for non-reinforced hoses), TPR vacuum hoses with plastic insulation and integrated reinforcement core (various diameters up to larger reinforced hoses, hoses usable up to 76 mm ID with appropriate hose ends).
• Fitting types: rotating quick couplings, semi-rapid fittings with reeded bush, L and T-type fittings, caps with O-rings, RMTPR/RTPR fittings for TPR hoses, NPT-to-gas adapters.
• Features: quick coupling/uncoupling, low-speed free rotation on some couplings, full suction passage (non self-retaining couplings), elimination of hose clamps with specific fittings, self-extinguishing materials for TPR hoses.
• Compatibility: thread variations (male/female, gas/metric, NPT), fittings available in multiple sizes for different hose diameters.
