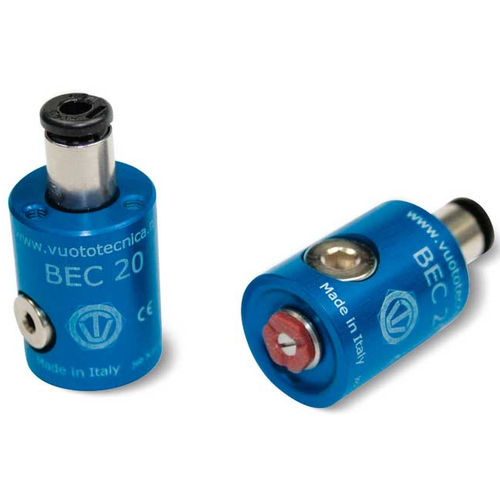

Присоска из силикона BEC series

из анодированного алюминияиз нержавеющей сталидля вакуума

Product description
Bernoulli’s theorem explains many phenomena, such as the lifting of a plane’s wing or of a light disc in front of a tube end from which air flows out quickly. This apparently paradoxical phenomenon is exploited for manufacturing vacuum gripping systems (vacuum cups) and handling, with no contact, fragile objects, such as semiconductor plates, silica discs, solar cells, precious metal foils and films.

Construction and features
Our cups based on Bernoulli’s principle are made with anodised aluminium, with stainless steel centre thrust disc. The antistatic silicone spacers, located on the cup gripping plane, prevent transverse movements of the gripped object. The compressed air supply connections can be axial and radial and the quick coupler for the flexible pipe is included in the package. The unused holes are closed with brass threaded caps. On the rear part of the cup there are 3 or 4 threaded holes for fitting it to the automation.

Applications

• Handling fragile objects without contact
• Semiconductor plates
• Silica discs
• Solar cells
• Precious metal foils
• Films

Caractéristiques / spécifications techniques

• Material: anodised aluminium body
• Centre thrust disc: stainless steel
• Antistatic silicone spacers on gripping plane
• Compressed air supply connections: axial and radial
• Quick coupler for flexible pipe included
• Unused holes: closed with brass threaded caps
• Rear mounting: 3 or 4 threaded holes for automation fitting
• Intended use: non-contact handling of fragile items (semiconductors, silica discs, solar cells, foils, films)

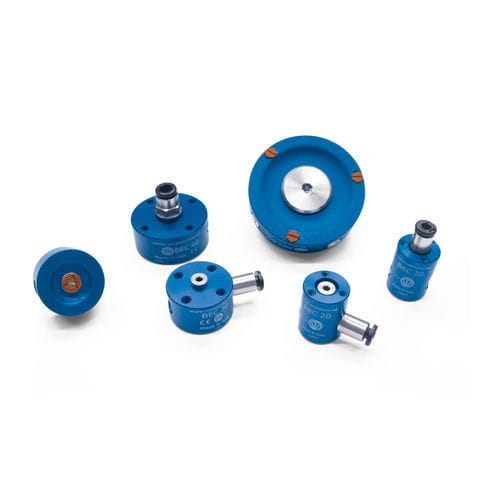

• Product codes: BEC20, BEC30, BEC40, BEC60
