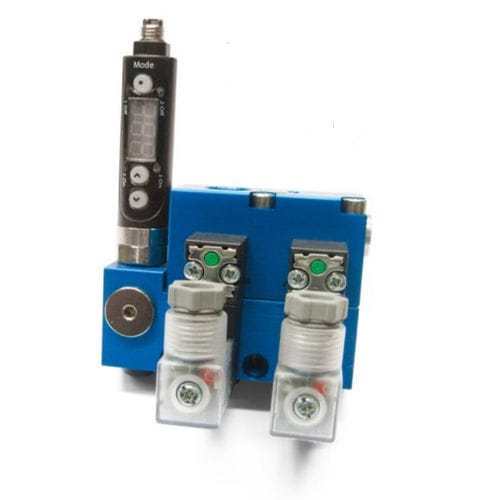

Эжектор с трубкой вентури со смазкой Vacumanager VM IO-Link

многоуровневыйрегулируемыйкомпактный

Overview
VACUMANAGER VM series units are integrated electro-pneumatic circuits designed to supply and manage single-stage and multi-stage vacuum generators. VM units are housed in an anodised body/distributor machined from billet aluminium.

Included components

• Digital vacuum switch with display (standard), also available on request in a version with IO-Link communication
• Compressed air supply valve
• Blow off valve
• Flow regulator for the blow off valve

Function and applications
A compact electro-pneumatic control circuit that incorporates all components for the management of vacuum and blow off generation in a handling system equipped with vacuum cups and powered by pneumatic vacuum generators (single-stage or multi-stage). In combination with Vuototecnica Energy Saving cables, these units limit the consumption of compressed air supplying the pneumatic vacuum generators to the time strictly necessary to empty the vacuum cups. This energy-saving solution is particularly suitable for vacuum cup handling operations on products with excellent sealing or with micro-porosity (metal sheets, glass, wood or plastic veneered panels, etc.). Vuototecnica also recommends VM units for handling all Octopus gripping systems equipped with pneumatic vacuum generators and shut-off valves.

Caractéristiques / spécifications techniques

• Body/distributor material: anodised aluminium machined from billet
• Integrated components: digital vacuum switch (with display), compressed air supply valve, blow off valve, flow regulator for blow off valve
• Digital vacuum switch: standard display; optional IO-Link communication version available
• Designed for use with single-stage and multi-stage pneumatic vacuum generators
• Optimised for energy saving when used with Vuototecnica Energy Saving cables
• Recommended for Octopus vacuum gripping systems with pneumatic vacuum generators and shut-off valves
• Relevant product codes: VM01, VM03, VM01IO, VM03IO, 0015202, 0015157, 0007424, 001220, 001221, 007304, 0015447, 123010
