Механический вакуумметр

с трубкой Бурдонацифровойс двойной шкалой

Category
Vacuum measurement, control and adjustment instruments

Vacuum and pressure unit conversion table
Vacuum and pressure unit conversion tables and pressure measurement unit conversion factors (absolute values).

Vacuum and pressure gauges
The measurement method is based on the Bourdon spring principle. Made using section tubes in special copper alloy, one end welded to the threaded pin of the gauge and the other end free. As vacuum or pressure changes the free end moves (Bourdon effect). Movement is amplified by a lever and transmitted to the pointer. Enclosed in a sturdy case; face and index visible through a clear protective disc. Available in radial or coaxial connectors, built-in or external flange, dry or glycerine filled. Except Ø 40 mm, models have a double scale dial. All models comply with EU safety standards and measurement units.
Product codes: 090315 090320 090325 090310 090110 090116 090210 090510 090516

Vacuum gauge with steel punch
Designed to detect vacuum level inside tin cans and food containers. Uses glycerine bath vacuum gauge fitted with a hardened steel punch to perforate containers and a silicone vacuum cup to guarantee seal after perforation. Available in standard version and other versions on request.
Product codes: 090599

Mini pneumatic vacuum switches
Extremely compact devices that give or remove a pneumatic signal when an adjustable vacuum level is reached. The differential between set max and recovery is not adjustable. Suited for controlling vacuum generators and activating pneumatic valves.
Product codes: 120130 120230

Mini electromechanical vacuum switch
Compact switch that provides an electric signal when an adjustable vacuum level is reached. Pressure differential between set value and reset is 50–60 mbar (not adjustable). Suitable for safety, cycle start, checking cup grip, etc.
Product code: 120210

Micro digital vacuum switches
Small devices calibrated and temperature-compensated for precise digital switching. Switching point programmed via adjustment screw on top; red LED indicates output status. Hysteresis = 2% of set value (not adjustable). Enclosure in polycarbonate including sensor and electronics; coupler or small aluminium manifold for vacuum connections. Item 120510P can be freely rotated to orient display. Vacuum connection via male/female M5; electrical via three-connector cable. Suited for dry air and non-corrosive gases.
Product codes: 120510P 120510N 120511P 120511N

Analogue vacuum switch
Compact, light ABS casing for machine mounting. If calibrated, provides precise measurement values. Adjustment range 0 to -1 bar. Outputs: analogue 1–5 V and a digital PNP output configurable via Teach-In. Switching point and hysteresis programmable via push buttons; two two-colour LEDs show status and error codes. Display rotatable without unscrewing from vacuum connection. Vacuum connection dual threaded: male G 1/8” or female M5. Electrical connection M8 4-pin threaded plug; cables available in PUR on request. Suited for measuring and controlling dry air and non-corrosive gases. Recommended for safety, energy-saving, and vacuum adjustment circuits.
Product codes: 120710

Digital IO-Link vacuum and pressure switches
Physical: robust ABS housing, compact and lightweight; mountable near point of use. Calibrated and temperature-compensated; integrated display shows measured values. Two LEDs indicate status of two independent digital outputs. Switching points and hysteresis (0–100%) programmable. Configurable functions: threshold comparison, NO/NC, unit selection, parameter lock, display inversion. Display rotation without disconnecting pneumatic connections. Pneumatic connection: G 1/8" male or M5 female; electrical M8 4-pin (PUR cable available). IO-Link version identifiable by logo/on-housing inscription; enables bidirectional communication, remote parameterization and diagnostics.
Applications: measurement and control of dry air and non-corrosive gases; safety signals, cycle start, vacuum cup control, optimizing energy of vacuum generators.
Product codes: 121010 122511

Digital vacuum switches
Parallelepiped (vs cylindrical) ABS enclosure; compact and light. Calibrated and temperature-compensated; display shows detected values (vacuum gauge non-required). Panel with two LED indicators (green/red) for two independent digital outputs. Switching points and hysteresis programmable via control buttons. Additional functions configurable (comparisons, NO/NC, units, function lock). Vacuum connection: G 1/8” male or M5 female double thread. Electrical: M8-4 pin jack or integrated PUR cable on some items. Adjustment range 0 to -1 bar. Item variants provide PNP outputs and/or 1–5 V analogue plus PNP.
Product codes: 123010A 123010

Digital vacuum and pressure switches
Compact ABS enclosure, calibrated and temperature-compensated. Display shows values; two LEDs indicate two digital outputs. Outputs independent; switching points and hysteresis programmable. Additional programmable functions: comparisons, NO/NC, unit choice, programming lock. Vacuum/pressure connection via female G 1/8” thread; electrical via 4-conductor cable. Suited for dry air and non-corrosive gases. Hysteresis function allows management of compressed air supply for energy saving.
Product codes: 122010P 123510P

Digital vacuum and pressure switches with two-colour display
Robust ABS container; calibrated and temperature-compensated. Main two-colour display (red/green) shows detected values; secondary display for set values. Two luminous indicators for outlets 1 and 2 show switching status for digital and analogue outputs. Switching points and hysteresis programmable. Additional functions programmable as above. Pneumatic connection: male G 1/8" or female M5; removable rapid-installation data cable supplied as standard. Suited for dry air and non-corrosive gases; recommended for safety, cycle start, cup grip checks; hysteresis enables energy saving.
Product codes: 124010 124012 124020

Accessories for analogue and digital vacuum and pressure switches

• Cable with axial connector
• Cable with radial connector
• Wall-mounting kit
• Fixing kit

Product codes: 001220 001221 001222 001230 001231 001232 001240 001241 001242 001243

Vacuum adjustment valves
When valve reaches pre-calibrated vacuum degree, atmospheric air is introduced into circuit to prevent increase and keep value constant. Used as regulators on circuits with single vacuum pump and single use (or multiple uses working at same vacuum). Often used as safety valves on non-commissioned tanks/containers at high vacuum and on vacuum cup lifting systems. Vacuum level adjusted by rotating knurled bush; fine thread ensures accurate calibration. Operating temperature range: -20 °C to +200 °C.
Product codes: 040110 040110INOX 040210 040210INOX 040310 040310INOX 040410 040410INOX 040510 040510INOX

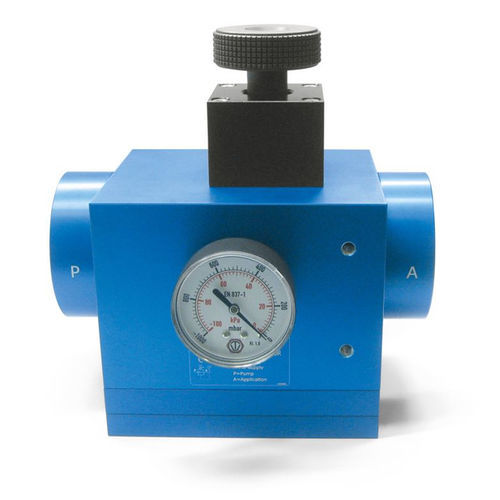

Vacuum regulators
Control level of vacuum maintaining it constant at pre-set value (secondary vacuum) regardless of network flow and primary vacuum fluctuations. Operate by membrane-piston using pressure differential between secondary vacuum and atmosphere. Unlike vacuum control valves, regulators do not release air into circuit, enabling multiple grip points at different vacuum values from single source. Vacuum adjusted by knurled thumb screw (clockwise increase).

Technical features (standard regulators)
- Operation: membrane-piston regulator
- Adjustable operating pressure: from 800 to 1 mbar abs.
- Flow rate: from 2 to 160 m3/h
- Room temperature: -10 to +80 °C
- Installation: any

Product codes: 110110 110210 110310 110410 110510 110610

Regulators for rough vacuum levels
Same principle; minimum adjustable vacuum close to atmospheric pressure. Technical features:
- Operation: membrane-piston regulator
- Adjustable operating pressure: from 980 to 1 mbar abs.
- Capacity: 20 to 160 m3/h
- Room temperature: -10 to +80 °C
- Installation: any
Product codes: 110350 110550 110650

Vacuum regulators with pneumatic adjustment
Adjustment by acting on pneumatic cylinder compressed air supply rather than manual screw: higher pressure increases vacuum level. Regulators keep secondary vacuum constant regardless of pump or primary vacuum. Operate with a pneumatic cylinder and a fluctuating piston driven by pressure differential.

Technical features (pneumatically adjusted)
- Operation: membrane-piston regulator
- Supply pressure: from 0 to 3 bar (some items) or 0 to 5 bar (other items)
- Adjustable working pressure: from 800 to 1 mbar abs. (range depends on item series) or 980 to 1 mbar abs. for some items
- Flow rate: from 2 to 160 m3/h (or higher ranges for larger items)
- Room temperature: -10 to +80 °C
- Installation: any

Product codes (examples): 110130 110230 110330 110430 110530 110630 110380 110580 110680

Additional regulator variants and higher-capacity units
Variants with increased flow capacities (e.g., flow from 370 to 750 m3/h or 390 to 750 m3/h) and adjusted supply pressure ranges exist for centralised plants and large installations. Example product codes: 110811 110911 110831 110931

Diagrams referring to the level of vacuum according to the servo-control supply pressure
Values in tables/diagrams are indicative and depend on atmospheric pressure, vacuum source flow rate and compressed air quality.

Sealing kit for vacuum reducers
Various sealing kits available for vacuum reducers. Product codes: 0011113 0011114 0011115 0011116 0011117 0011118 0011119 0011120 0011121 0011122 0011123 0011124 0011125 0011126 0011127 0011128 0011129 0011130

Caractéristiques / spécifications techniques

• Measurement principle for gauges: Bourdon spring (section tubes in special copper alloy).
• Enclosures: ABS or sturdy cases depending on model; protective clear disc on face.
• Filling: dry or glycerine-filled options for gauges.
• Connections pneumatic: G 1/8" male or M5 female (double-thread) depending on model.
• Electrical connections: M8 4-pin threaded plug, integrated PUR cables (some items), or three-connector cable for micro switches.
• Analogue outputs: 1–5 V available on some analogue/digital hybrid models.
• Digital outputs: PNP outputs on many items; two independent digital outputs common.
• IO-Link: available on IO-Link models for bidirectional communication and remote parameterization.
• Adjustment/hysteresis: programmable hysteresis 0–100% on digital models; micro digital hysteresis 2% of set value.
• Operating temperature ranges: typical -10 °C to +80 °C (regulators/switches); some valves rated -20 °C to +200 °C.
• Flow rates: from small units 2 m3/h up to larger units 750 m3/h depending on series.
• Typical adjustable vacuum ranges: from near-atmospheric (≈980–1000 mbar abs) down to 1 mbar abs (depending on model).
• Typical uses: measurement and control of dry air and non-corrosive gases, safety signalling, cycle start, vacuum cup grip control, energy optimization for vacuum generators, food container vacuum checks (specialized punch gauge).
