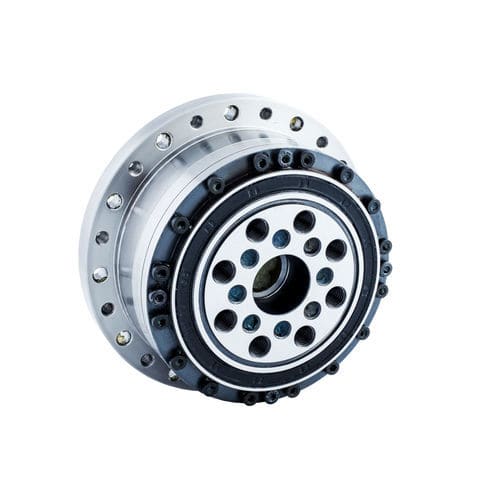

Гармонический редуктор LCSG-RDB

коаксиальныйсо сплошным валом5-10 Nm

Product IntroductionThe LCSG-RDB series harmonic reducers are developed based on the FSG-I platform to facilitate direct motor connection for customers. They are equipped with pre-designed holes for motor shaft connection and mounting flanges, and the reducer features an internal seal with special factory-made grease. This series typically uses a fixed round splined end and an output flexible splined end, directly connected to the motor during operation. This provides exceptional convenience for applications requiring direct motor connection and custom sealing flanges—customers can simply secure the motor connection with screws for immediate use after purchase. Such a design simplifies integration while maintaining seal integrity for users with direct drive requirements.Sealed flange features and pre-processed holes for motor shaft connection based on the FSG series designSignificantly simplifies installation for the customer, eliminating the need for custom flange fabricationProvides excellent rotational and positioning accuracyCoaxial input and output configurationSpecificationsStarting Torque c N mReduction RatioModel1417202532405058508.827435685136--807.5253650741171792441006.924324972112171231120-24314868110--160--314767105--LCSG Series Harmonic Speed Reducer Bending Moment Load TableModelPermissible Use ValueInstantaneous Permissible ValueLCSG-14Mb di 20 NmMb max 40 NmFt di 180NFt max 320NFa from 180NFa max 320NLCSG-17Mb di 30 NmMb max 60 NmFt di 230NFt max 400NFa di 230NFa max 400NLCSG-20Mb 42 NmMb max 80 NmFt di 270NFt max 480NFa from 270NFa max 480NLCSG-25Mb from 80 NmMb max 160 NmFt from 440NFt max 770NFa from 440NFa max 770NLCSG-32Mb 220 NmMb max 440 NmFt di 900NFt max 1600NFa from 900NFa max 1600NLCSG-40Mb 320 NmMb max 650 NmFt from 1000NFt max 1750NFa from 1000NFa max 1750NPositionModelReduction RatioNominal Input Torque2000r/minMax Allowable Start/Stop TorqueAverage Load Torque Max AllowableMax Instantaneous Allowable TorqueMax Allowable Input SpeedAllowable Average Input SpeedBacklashMax Synchronous Belt TensionWeightDesignService LifeNmNmNmNmrpmrpmarc secNkghour14506.6238.64380003500≤20≤770.7210000809.62913.557≤10150001009.63413.566≤1015000 Technical Specifications / FeaturesDirect motor connection with pre-designed mounting holesFactory-sealed with special greaseFixed round splined input, flexible splined outputHigh rotational and positioning accuracyCoaxial input/outputMultiple reduction ratios and torque optionsModels: LCSG-14, LCSG-17, LCSG-20, LCSG-25, LCSG-32, LCSG-40, etc.
