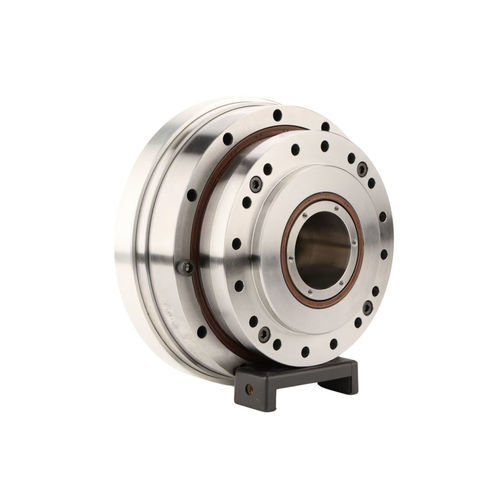

Гармонический редуктор LHSG-RDP

коаксиальныйсо сплошным валом5-10 Nm

IntroductionLHSG-RDP series harmonic drive reducer is developed on the FHG-I high rigidity platform to meet the needs of customers requiring direct motor integration. The reducer is equipped with pre-processed holes for connecting the motor shaft and motor mounting flanges, as well as a factory seal with special grease. Reducers of this series usually have a fixed end with a flexible spline and an output end with a round spline, directly connected to the motor during operation. This provides exceptional convenience for applications requiring both direct motor connection and increased harmonic drive rigidity - customers can use it immediately by simply aligning the motor shaft and tightening the fasteners after purchase. This design optimizes installation efficiency while maintaining structural strength for high-rigidity direct drive scenarios.Integrated with motor shaft and flange, with pre-processed holes for motor mounting based on the FHG series platformSignificantly simplifies integration for the customer, eliminating the need for custom flange manufacturingProvides superior rotational accuracy and positioning repeatabilityCoaxial alignment of input/output shaftSpecificationsStarting Torque c N·mModelReduction Ratio14172025324050579183562803.5561122381003.245.29.52135120—3.548.51830160——3.871527LHSG Series Harmonic Reducer Load Table with Bending Moment (not more than)ModelAllowable ValuesInstantaneous Allowable ValueLHSG-14Mbdi 41 N·mMb max 80 N·mFtdi 270NFt max 490NFa from 270NFa max 490NLHSG-17Mbdi 72 N·mMb max 140 N·mFtdi 400NFt max 700NFa from 400NFa max 700NLHSG-20Mbdi 140 N·mMb max 280 N·mFtdi 650NFt max 1150NFa from 650NFa max 1150NLHSG-25Mb 243 N·mMb max 480 N·mFtdi 900NFt max 1600NFa from 900NFa max 1600NLHSG-32Mbdi 460 N·mMb max 900N·mFtdi 1350NFt max 2300NFa from 1350NFa max 2300NLHSG-40Mbdi 600 N·mMb max 1200N·mFtdi 2000NFt max 3500NFa from 2000NFa max 3500NLHSG-50Mb 2250 N·mMb max 8900 N·mFtdi 2850NFt max 11600NFa from 2850NFa max 11160NLHSG-58Mbdi 2500 N·mMb max 10000 N·mFtdi 3200NFt max 13000NFa from 3200NFa max 13000NPositionModelReduction RatioInputNominal Torque at 2000 rpmMax Allowable Torque at Start/StopMax Allowable Average Load TorqueMax Instantaneous Allowable TorqueMax Allowable Input SpeedAllowable Average Input SpeedBacklashWeightLifetime14506.6238.64380003500≤100.511000014809.62913.55780003500≤100.5115000141009.63413.56680003500≤100.5115000... (table continues for all models and ratios)Series: LHSG-RDPPlatform: FHG-I high rigidityDirect motor integrationPre-processed mounting holesFactory lubricationFlexible and round spline optionsHigh installation efficiencyHigh structural strength
