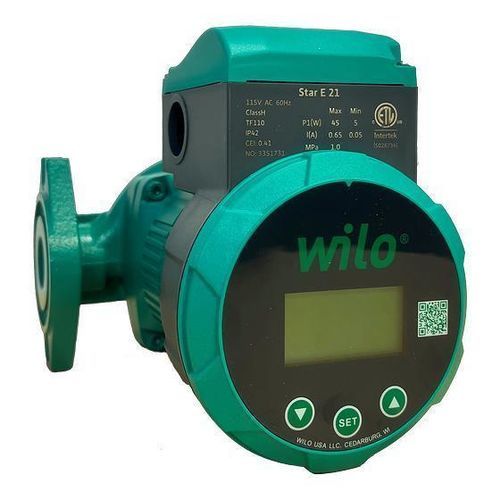

Циркулятор с подогревом Star E 21

Краткое описание

• Циркуляционный насос с мокрым ротором

Особенности

• High-efficiency, EC Motor-driven technology
• Differential temperature control
• Auto mode: Automatically adjusts to the system demand
• Three HD modes – proportional control
• Four speed control
• LED display and adjustment buttons for easy set-up and changes

Применение

• Heating and cooling
• Industrial Circulation
• Water/Glycol concentrations up to 50%
• Solar
• Geothermal

Оснащение / Функция

• High-efficiency, EC Motor-driven technology
• Differential temperature control
• Auto mode: Automatically adjusts to the system demand
• Three HD modes – proportional control
• Four speed control
• LED display and adjustment buttons for easy set-up and changes

Таблица изделий
Обозначение изделия | Присоединение к трубопроводу | Подключение к сети | Количество на палету | Максимальное рабочее давление | Артикульный номер
Star E 21 | 0.75"-1.5" Two Bolt Flange | 1~115 V, 60 Hz | 120 | 145 фунт на кв. дюйм | 3351731

Комплект поставки

• Plastic Composite Check Valves (Included but optional)

caractéristiques / spécifications techniques

• Fluid temperature range: 36°F to 230°F
• Maximum operating pressure: 145 PSI (10 Bar)
• Cast Iron HT200 pump body
• Composite PA66+30%GF impeller
• Ceramic shaft
