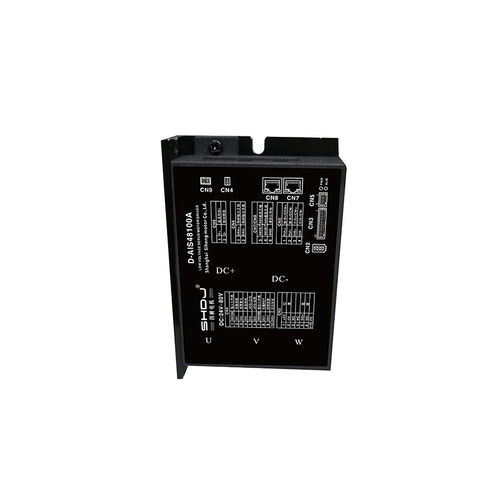

Сервовариатор DC D – AIS48100A

ModbusRS-48536-72В

Product Details This driver features strong stability, high-precision positioning, high motor response, low noise, low heat generation, excellent structural design, strong overload capacity, practical and rich functions, and simple and convenient application. It provides protection against over-voltage, under-voltage, overspeed, over-current, overload, encoder faults, position deviation, stalling, parameter deviation, etc. Technical Specifications Drive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300 Control Method① Position control ② Speed control ③ Torque control ④ Communication controlControl FeaturesSpeed frequency response: ≥200 Hz, Pulse input frequency ≤200 kHz, Speed variation: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power supply voltageMonitoring FunctionCurrent speed, DI input, DO output, Current position, Command pulse input accumulation, Average load speed, Position deviation counter, Motor phase current, Bus voltage value, Module temperature, Alarm record, Command pulse frequency corresponding to speed, Operating status, etc.Home Return Function13 types of autonomous (search) home return modes, and home offset functionRS485 FunctionComplies with Modbus RTU protocol, One-to-two communication interface for easy networking and parallel connection Driver Installation Dimensions Product model: D – AIS48100A Rated voltage: 36 – 72V Rated current: 100A Split-type Driver Hardware Interface Applicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200A Split-type AI MOTOR Driver Interface Diagram Serial No.SymbolFunctionNotesCn11UMotor U-phase. Power cable JVW-interface for motor adaptation2VMotor V-phase3WMotor W-phase4DC–Negative pole of input power supply. External DC input must distinguish positive and negative poles; voltage range: 48V DC5DC+Positive pole of input power supply More interface and wiring details are available in the full product description, including encoder, DI/DO, RS485, and brake wiring. Reference Table for External Brake Resistor Selection (Split-type Driver Interface Cn9) Split-type Drive ModelRated Output CurrentRequired External Brake Resistor ValueRequired External Brake Resistor PowerD – AISXX008A8A10 – 30 ΩOver 100WD – AISXX0015A15A10 – 30 ΩOver 100WD – AISXX0025A25A10 – 30 ΩOver 100WD – AISXX0050A50A5 – 15 ΩOver 200WD – AISXX00100A100A5 – 15 ΩOver 200WD – AISXX00200A200A5 – 15 ΩOver 200W Standard Wiring Diagrams Power input terminals must strictly distinguish positive and negative poles. Input voltage range may differ for different models. Refer to the hardware interface wiring diagram for the corresponding model. This product has certain overload capacity. When selecting an external pulse power supply, the output power should be 1.5 times the rated current of this product. The rated current is indicated on the factory nameplate. Supports wide voltage range pulse input (5 – 24V), max pulse frequency 200 kHz. Recommended to use double-shielded wires for pulse control lines and avoid routing with strong interference sources. Each digital input/output can be freely assigned different functions, but the same function cannot be assigned to multiple DIs. RS485 communication supports multi-slave connection, with recommendations for terminal resistors for high-noise environments. Key Features / Technical Specifications Model: D – AIS48100A Voltage range: 36 – 72V Rated current: 100A Control methods: Position, speed, torque, communication Speed frequency response: ≥200 Hz Pulse input frequency: ≤200 kHz RS485 communication: Modbus RTU protocol Multiple protection functions: over-voltage, under-voltage, over-current, overload, encoder fault, etc. Rich monitoring and diagnostic functions Split-type hardware interface for flexible integration
