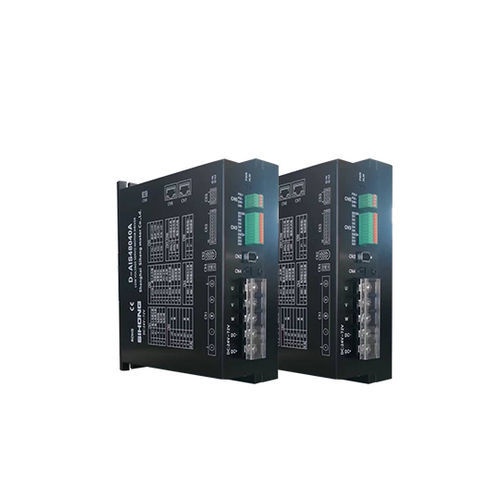

Сервовариатор DC D – AIS48050A

RS-485ModBUS RTU24-72 В

Product DetailsD – AIS48050A Low – Voltage Intelligent Servo Motor DriverProduct Overview:This product features strong stability, high-precision positioning, high motor response, low noise, low heat generation, excellent structural design, strong overload capacity, practical and rich functions, and simple and convenient application. It provides protection against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder faults, position deviation, stalling, parameter deviation, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position Control ② Speed Control ③ Torque Control ④ Communication ControlControl FeaturesSpeed frequency response: ≥200 Hz, Pulse input frequency ≤200 kHz, Speed change rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power supply voltageMonitoring FunctionCurrent speed, DI input, DO output, Current position, Command pulse accumulation, Average load speed, Position deviation counter, Motor phase current, Bus voltage value, Module temperature, Alarm record, Command pulse frequency corresponding to speed, Operating status, etc.Home Return Function13 types of autonomous (search) home return modes, and home offset functionRS485 FunctionComplies with Modbus-RTU protocol, one-to-two communication interface for easy networking and parallel connectionDriver Installation DimensionsProduct Model: D – AIS48050ARated Voltage: 24 – 72VRated Current: 50ASplit-type Driver Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit-type AI MOTOR Driver Interface DiagramSerial No.SymbolFunctionNotesCn1-1UMotor U-phaseJVW interface power cable for motor adaptationCn1-2VMotor V-phaseCn1-3WMotor W-phaseCn1-4DC-Negative pole of input power supplyExternal DC input power supply must distinguish positive and negative poles; voltage range: 48V DCCn1-5DC+Positive pole of input power supply...(For brevity, only a portion of the interface table is shown. The full table includes all connection details as in the original.)Reference Table for Selecting Discharge Brake Resistor for Split-type Driver Interface Cn9Split-type Drive ModelRated Output CurrentRequired Value of External Brake ResistorRequired Power of External Brake ResistorD – AISXX008A8A10Ω – 30Ω rangeOver 100WD – AISXX0015A15A10Ω – 30Ω rangeOver 100WD – AISXX0025A25A10Ω – 30Ω rangeOver 100WD – AISXX0050A50A5Ω – 15Ω rangeOver 200WD – AISXX00100A100A5Ω – 15Ω rangeOver 200WD – AISXX00200A200A5Ω – 15Ω rangeOver 200WStandard Wiring DiagramHigh-speed Pulse Signal WiringDI and DO Terminal WiringDO Output Terminal WiringRS485 Communication WiringMulti-slave ConnectionDebugging Connection with Host ComputerKey Features / Technical Specifications:Model: D – AIS48050AVoltage Range: 24 – 72VRated Current: 50AControl Methods: Position, Speed, Torque, CommunicationRS485 Modbus-RTU supportMultiple protection features (over-voltage, under-voltage, overcurrent, etc.)Rich monitoring and feedback functionsComprehensive wiring and interface options
