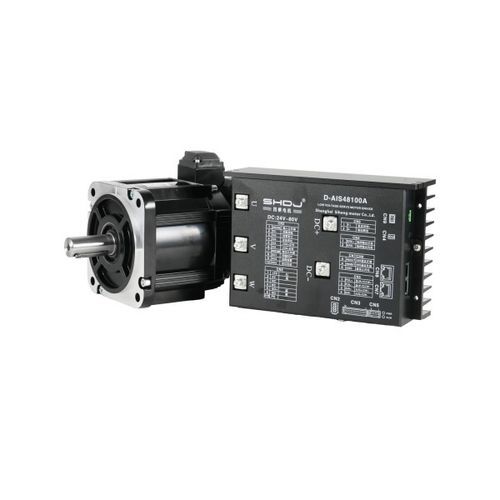

Бесщеточный серводвигатель 110mm Series

DC60V48 В

Product SpecificationsM-110 series low-voltage servo motorModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Motor Length (mm)M110AIS204 – 48 – C05030 – Б1 – 44841204M110AIS219 – 48 – C06030 – Б1 – 46034.5219M110AIS219 – 48 – C06430 – Б1 – 44856219Motor ModelM110AIS204 – 48 – C05030 – Б1 – 4M110AIS219 – 48 – C06030 – Б1 – 4M110AIS219 – 48 – C06430 – Б1 – 4Rated Power (kW)150018002000Rated Voltage (V)484848Rated Current (A)416.056Rated Speed (rpm)300030003000Max Speed (rpm)––4000Rated Torque (Nm)5.066.4Line Back-EMF Constant9.2616.7±10%Line Resistance (Ohm)0.04±10%0.780.02±10%Line Inductance (mH)0.07±10%2.680.03±%Moment of Inertia6.37.67.6±%L without Brake (mm)204219219L with Brake (mm)269284284Number of Rotor Pole Pairs (P)484Motor Insulation ClassClass FProtection ClassIP65 Motor DimensionDriver DimensionCategory: 110mm Series DC Servo Motor and Driver, Split DC Servo Motor and DriverTags: DC motor, Brushless motor, Closed-loop stepper motor, DC servo motor, Motor driver, Servo motor and driver, Stepper motorTechnical Specifications:Model: M110AIS204, M110AIS219Rated Power: 1500W, 1800W, 2000WRated Voltage: 48VRated Current: 41A, 6.0A, 56ARated Speed: 3000 rpmMax Speed: up to 4000 rpmRated Torque: 5.0 Nm, 6 Nm, 6.4 NmLine Back-EMF Constant: 9.2, 61, 6.7±10%Line Resistance: 0.04±10%, 0.78, 0.02±10%Line Inductance: 0.07±10%, 2.68, 0.03±%Moment of Inertia: 6.3, 7.6, 7.6±%Length without Brake: 204mm, 219mmLength with Brake: 269mm, 284mmNumber of Rotor Pole Pairs: 48, 4Insulation Class: FProtection Class: IP65
