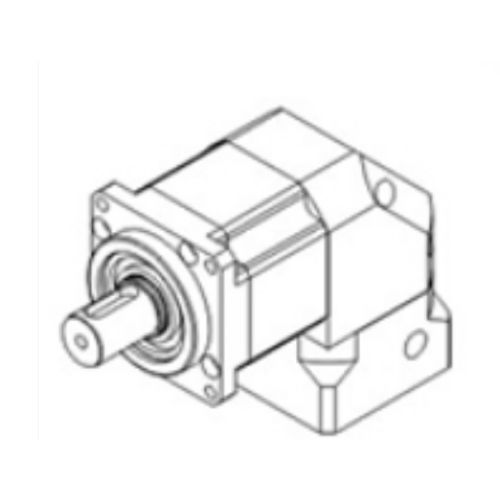

Планетарный редуктор WPF60 series

ортогональныйс полым валомсверхточный

An integrated nut is installed on the output carrier of the planetary gearbox to eliminate axial clearance. The front and rear bearings are distributed over a large span inside the solid gearbox housing, forming an ultra-strong integrated structure that provides high torsional rigidity, extremely strong radial load capacity, and excellent axial load capacity. A time and finishing machining process is adopted to ensure extremely high coaxiality.StageFirst StageSecond StageThird StageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length150.5166.5182.5Max Radial Force400N500N800NMax Axial Force300N390N700NFull Load Efficiency≥94%≥92%≥88%Weight2.0kg2.3kg2.6kgService Life≥20000h≥20000h≥20000hRated Input Speed3000rpm3000rpm3000rpmMax Input Speed8000rpm8000rpm8000rpmMotor Power400W400W400WGear Accuracy Class6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection DegreeIP65IP65IP65Lubrication MethodLong-life lubricationLong-life lubricationLong-life lubricationMounting MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications:Integrated nut on output carrier for eliminating axial clearanceFront and rear bearings distributed over a large span for high rigidityUltra-strong integrated structureHigh torsional rigidityExcellent radial and axial load capacityHigh coaxiality ensured by advanced machiningReduction ratios: 3/4/5/7/10 (1st), 12/16/20/25/28/35/40/50/70 (2nd), 80/100/125/140/175/200/250/700/1000 (3rd)Body lengths: 150.5mm / 166.5mm / 182.5mmMax radial force: 400N / 500N / 800NMax axial force: 300N / 390N / 700NFull load efficiency: ≥94% / ≥92% / ≥88%Weight: 2.0kg / 2.3kg / 2.6kgService life: ≥20000hRated input speed: 3000rpmMax input speed: 8000rpmMotor power: 400WGear accuracy class: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection degree: IP65Lubrication: Long-life lubricationMounting: Flange
