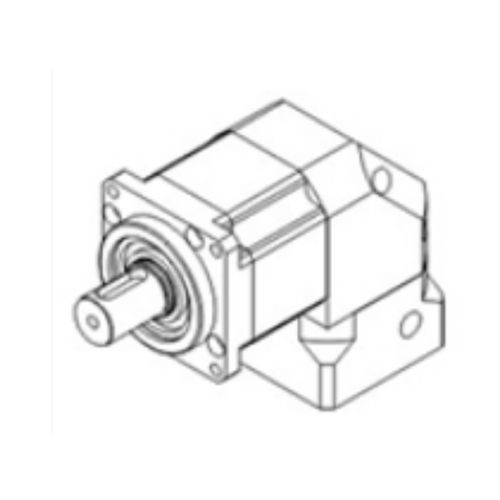

Планетарный редуктор WPF42 series

ортогональныйс полым валомс фланцем

An integrated nut is installed on the output carrier of the planetary gearbox to eliminate axial clearance. The front and rear bearings are distributed over a large span inside the solid gearbox housing, forming an ultra-strong integrated structure that provides high torsional rigidity, extremely strong radial load capacity, and excellent axial load capacity. A time and finishing machining process is adopted to ensure extremely high coaxiality.Overall gearbox dimension drawing:Main Technical ParametersLevelFirst StageSecond StageReduction Ratio4/5/816/20/25/32/40Body Length72.284.2Maximum Radial Force280N320NMaximum Axial Force200N240NFull Load Efficiency≥90%≥86%Weight0.7kg0.9kgService Life≥20000h≥20000hRated Input Speed2500rpm3000rpmMaximum Input Speed4500rpm6000rpmGear Accuracy Class6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°Protection DegreeIP65IP65Lubrication MethodLong-life lubricationLong-life lubricationMounting MethodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications:Integrated nut on output carrier for eliminating axial clearanceFront and rear bearings distributed over a large span for high rigidityUltra-strong integrated structureHigh torsional rigidityExcellent radial and axial load capacityHigh coaxiality ensured by precision machiningReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2 mm (1st stage), 84.2 mm (2nd stage)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7kg (1st), 0.9kg (2nd)Service life: ≥20000hRated input speed: 2500rpm (1st), 3000rpm (2nd)Max input speed: 4500rpm (1st), 6000rpm (2nd)Gear accuracy: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-life lubricationMounting: Flange
