Планетарный редуктор P142 series

коаксиальныйс полым валомс фланцем

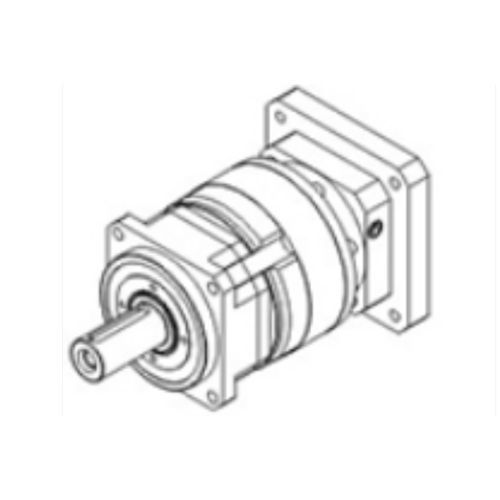

An integrated nut is installed on the output carrier of the planetary gearbox to eliminate axial clearance. The front and rear bearings are distributed over a large span inside the solid gearbox housing, forming an ultra-strong integrated structure that provides high torsional rigidity, extremely strong radial load capacity, and excellent axial load capacity. A time and finishing machining process is adopted to ensure extremely high coaxiality.Gearbox outline drawingMain Technical ParametersLevelFirst StageSecond StageReduction Ratio3/4/5/812/15/16/20/25/32/40/64Body Length290334.5Maximum Radial Force10000N12200NMaximum Axial Force16000N21000NFull Load Efficiency≥96%≥94%Weight16.5kg22.5kgService Life ≥20000hRated Input Speed2500rpm2500rpmMaximum Input Speed4500rpm4500rpmMotor Power3000W3000WGear Accuracy Class6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°Protection DegreeIP65IP65Lubrication MethodLong-lasting lubricationLong-lasting lubricationMounting MethodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut to eliminate axial clearanceHigh torsional rigidityHigh radial and axial load capacityHigh coaxiality due to precision machiningReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage)Body length: 290 mm (1st stage), 334.5 mm (2nd stage)Max radial force: 10000N (1st), 12200N (2nd)Max axial force: 16000N (1st), 21000N (2nd)Full load efficiency: ≥96% (1st), ≥94% (2nd)Weight: 16.5kg (1st), 22.5kg (2nd)Service life: ≥20000h (2nd stage)Rated input speed: 2500rpmMax input speed: 4500rpmMotor power: 3000WGear accuracy: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-lasting lubricationMounting: Flange
