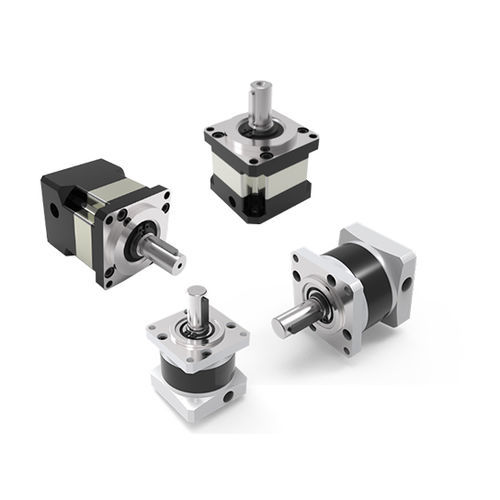

Планетарный редуктор PF160 series

коаксиальныйс полым валом

An integrated nut is installed on the output carrier of the planetary gearbox to eliminate axial clearance. The front and rear bearings are distributed over a large span inside the solid gearbox housing, forming an ultra-strong integrated structure that provides high torsional rigidity, extremely strong radial load capacity, and excellent axial load capacity. A time and finishing machining process is adopted to ensure extremely high coaxiality.Overall Gearbox Drawing:Main Technical Parameters:LevelFirst StageSecond StageThird StageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Max Radial Force10000N12200N20000NMax Axial Force16000N21000N36000NFull Load Efficiency≥96%≥94%≥90%Weight17.5kg23.5kg27.5kgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMax Input Speed4500rpm4500rpm5000rpmMotor Power3000W3000W3000WGear Accuracy Class6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection DegreeIP65IP65IP65Lubrication MethodLong-lasting lubricationLong-lasting lubricationLong-lasting lubricationMounting MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications:Integrated nut on output carrier for eliminating axial clearanceFront and rear bearings distributed over a large span for high rigidityUltra-strong integrated structureHigh torsional rigidityExcellent radial and axial load capacityHigh coaxiality ensured by advanced machiningReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage), 80/100/120/125/160/200/256/512 (3rd stage)Body lengths: 290mm, 334.5mm, 379mmMax radial force: 10000N, 12200N, 20000NMax axial force: 16000N, 21000N, 36000NFull load efficiency: ≥96%, ≥94%, ≥90%Weight: 17.5kg, 23.5kg, 27.5kgService life: ≥20000hRated input speed: 2500rpm (1st/2nd), 2000rpm (3rd)Max input speed: 4500rpm (1st/2nd), 5000rpm (3rd)Motor power: 3000WGear accuracy: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-lastingMounting: Flange
