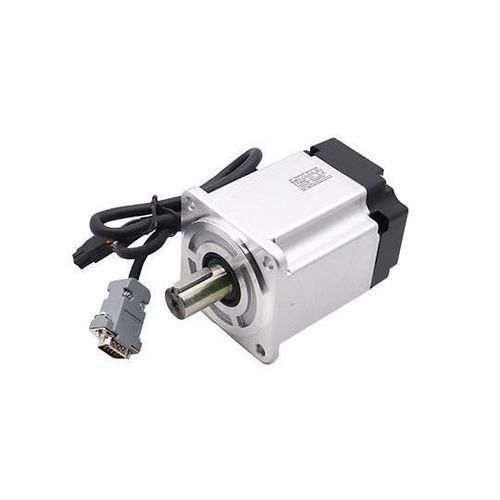

Бесщеточный серводвигатель 80B series

220 ВIP655 полюсов

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high quality and high responsiveness. Speed: Good speed characteristics. The rated speed can usually reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for cases with instantaneous load fluctuations and the need for rapid start. Stability: Smooth operation at low speeds, no step operation phenomenon similar to stepper motors during low-speed operation. Suitable for cases requiring high response speed. Timeliness: The dynamic response time during acceleration and deceleration of the motor is short, usually within tens of milliseconds. Comfort: Significantly reduced heat and noise.ModelVoltage (VAC)Current (A)Torque (Nm)BrakeWeight (kg)Body Length (mm)808 ST-C02430-2B12204.52.39Without brake102808 ST-C02430-2B1-Z2204.52.39With brake128808 ST-C03230-2B12205.93.2Without brake113808 ST-C03230-2B1-Z2205.93.2With brake140Motor Technical Specifications:Model80 BST-C02430-2B180 BST-C02430-2B1-Z80 BST-C03230-2B180 BST-C03230-2B1-ZRated Voltage (V)220220220220Rated Power (W)75075010001000Rated Current (A)4.54.55.95.9Rated Torque (N·m)2.392.393.23.2Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)5000±10%5000±10%5000±10%5000±10%Back EMF Constant (V/Krpm)34.334.33636Line Resistance (Ohm)1.451.450.920.92Line Inductance (mH)4.954.953.43.4Rotor Inertia (10⁻¹kg·m²)1.481.481.931.93Constant Torque (Nm/A)0.530.530.540.54Electrical Time Constant (ms)3.413.413.73.7BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (mm)102128113140Rotor Pole Pairs5PInsulation ClassClass FProtection RatingIP65––IP5Outline Drawing:17-bit and 23-bit absolute value photoelectric encoderHigh quality and high responsivenessRated speed up to 3000 rpm, max speed up to 6000 rpmStrong overload resistance (up to 3x rated torque)Stable operation at low speed, no step operationShort dynamic response time (tens of ms)Reduced heat and noiseProtection class: IP65Insulation class: FAvailable with or without brake
