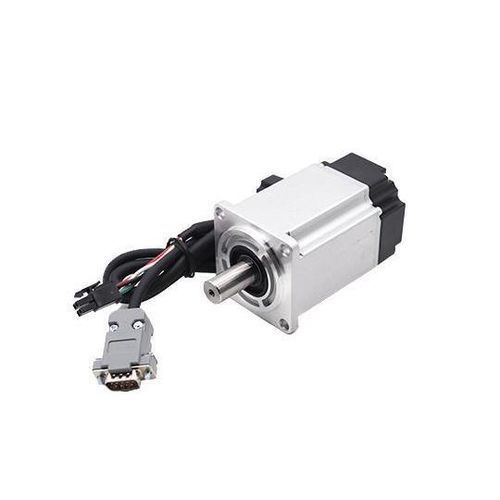

Серводвигатель AC 60B series

220 Вс кодирующим устройствомиз нержавеющей стали

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high quality and high responsiveness. Speed: Good speed characteristics. The rated speed can usually reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for cases with instantaneous load fluctuations and the need for rapid start. Stability: Smooth operation at low speeds, no step operation phenomenon similar to stepper motors during low-speed operation. Suitable for cases requiring high response speed. Timeliness: The dynamic response time during acceleration and deceleration of the motor is short, usually within tens of milliseconds. Comfort: Significantly reduced heat and noise. ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without brake74.560BST-C00630-2B1-Z2201.60.64With brake9860BST-C01330-2B12202.61.27Without brake9360BST-C01330-2B1-Z2202.61.27With brake116.5 Motor Technical Specifications Motor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/krpm)25253131Line Resistance (Ω)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10-3kg·m2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (L mm)74.59893116.5 Outline Drawing Encoder: 17-bit/23-bit absolute value photoelectric encoderRated speed: up to 3000 rpm, max 6000 rpmOverload resistance: up to 3x rated torqueDynamic response: tens of millisecondsLow heat and noise
