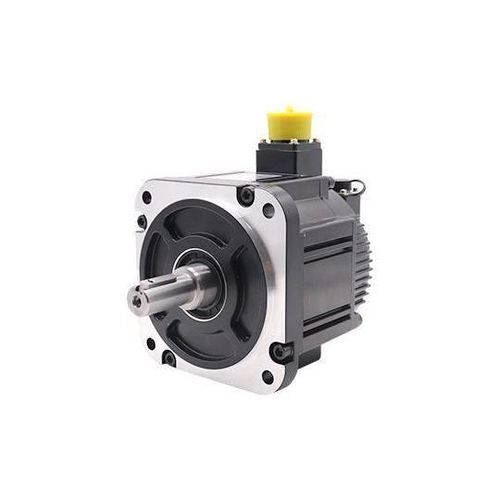

Серводвигатель 220 В 110B series

IP6510 полюсов

Product Features:17-bit and 23-bit absolute value photoelectric encoder, high quality and high responsiveness.Speed: Excellent speed characteristics. The rated speed can typically reach 3000 rpm, and the maximum speed can reach 6000 rpm.Adaptability: Strong overload resistance, can withstand loads three times the rated torque, especially suitable for applications with instantaneous load fluctuations and the need for rapid start-up.Stability: Smooth operation at low speeds, no step-like operation at low speeds as seen in stepper motors. Suitable for applications requiring high response speed.Timeliness: Short dynamic response time during acceleration and deceleration, usually within tens of milliseconds.Comfort: Significantly reduced heat and noise.Product Characteristics Table:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)Datasheet PDF110BS1200C2-Standard2205.2––140 110BS1200C2-Brake Z2205.2––165.5 110BS1800C2-Standard2206.8––163 110BS1800C2-Brake Z2206.8––188.5Motor Technical Specifications:Parameter110B51200C2-17D/17N110B51200C2-17DZ/17NZ110B51800C2-17D/17N110B51800C2-17DZ/17NZRated Power (W)1200120018001800Rated Voltage (V)220220220220Rated Current (A)5.25.26.86.8Instantaneous Max Current (A)16.416.420.520.5Rated Torque (N·m)3.823.825.735.73Instantaneous Max Torque (N·m)11.4611.4617.1917.19Rated Speed (rpm)3000300030003000Peak Speed (rpm)4500450040004000Back EMF (V/Krpm)45455151Torque Constant (N·m/A)0.730.730.840.84Line Resistance (Ω)0.790.790.70.7D-Axis Inductance (mH)3.93.93.23.2Q-Axis Inductance (mH)5.25.24.34.3Electrical Time Constant (ms)9.99.99.19.1BrakeWithout BrakeWith BrakeWithout BrakeWith BrakeRotor Inertia (10⁻⁴kg·m²)5.26.47.89.0Weight (kg)4.45.45.96.9Body Length (mm)140165.5163188.5Pole Number10101010Encoder Resolution17D (Single-turn)17DZ (Multi-turn)17N (Single-turn)17NZ (Multi-turn)Insulation ClassFFFFProtection RatingIP65IP65IP65IP65Outline Drawing:Key Features / Technical Specifications:17-bit/23-bit absolute value photoelectric encoderRated speed: up to 3000 rpm, max 6000 rpmOverload resistance: up to 3x rated torqueStable low-speed operation, no step-like movementShort dynamic response time (tens of ms)Reduced heat and noiseRated power: 1200W/1800WRated voltage: 220VRated current: 5.2A/6.8AProtection class: IP65Insulation class: FPole number: 10Encoder: single-turn/multi-turn, 17-bit/23-bit
