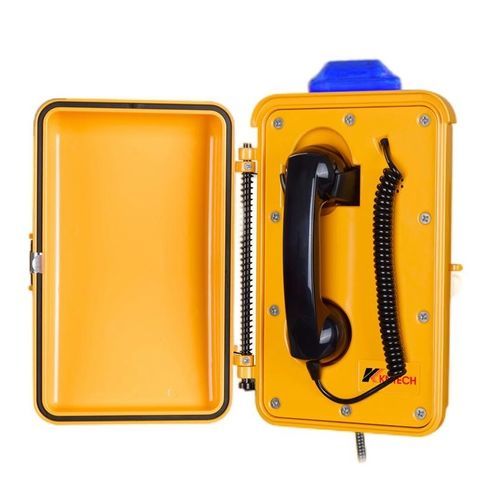

Аналоговый промышленный телефон KNSP-03-D23

IPPoEЛВС

Product

Model KNSP-03-D23
Size 320*205*120mm
Material Aluminum alloy

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware
• Waterproof rating IP66 (dust proof)
• Line-powered blue indication lamp
• Noise-canceling microphone; automatically filters out train/car noise for clearer call quality; without keypad, supports hotline setting and scroll dialing
• Magnetic reed hook-switch
• DC input overvoltage/overcurrent protection and RJ45 surge protection
• Heavy duty handset with hearing-aid compatible (HAC) receiver
• Handset with industrial strong curly cord
• Door cover: auto-orient and good self-closing
• Operating temperature range: -40°C to +70°C
• Support echo cancellation
• Support remote software upgrade, configuration and monitoring
• Powder coated in UV stabilized polyester finish
• Applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03 -IP-Y_P | POE | SP0030022
KNSP-03 -IP-Y_ADP | DC12V 1A + POE | SP0030092

Notes
*AD — Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P — POE

Certifications

• Australian communications: AS/CA S004
• Australian equipment safety: AS/NZS 60950.1:2015
• RCM: AS/NZS CISPR 32
• EMC: EN55032, EN55024, EN61000-3-2

Installation / Dimensions
Unit size: 320 * 205 * 120 mm

Packaging
Unit net weight: 4.86 KG
1 pcs packing box size: 439 * 277 * 191 mm, N.W: 5.8 KG
6 pcs in 1 outer carton box size: 730 * 390 * 340 mm, N.W: 36.5 KG

System / Usage
The blue light station is used in industrial telephone systems as an emergency alarm and help/alarm warning device, commonly applied in chemical industry and nuclear power generation areas.

Application
Designed for outdoor or industrial use: tunnels, metros, railways, highways/roadside, marine environments, mines, power plants, bridges and similar hazardous/outdoor locations.

Detailed pictures
Multiple detailed views available showing multi-angle, in-tunnel, and emergency use installations.

caractéristiques / spécifications techniques

• VoIP: SIP 2.0 compatible; DTMF dialing
• Audio codecs: G.711, G.723, G.726, G.729
• MTBF: 100,000 hours; MTTR: 2 hours
• Network: 10/100 Base-TX Ethernet, RJ45; use Cat5e or better
• Free dial: maximum length of each number is 32 digits
• Communication: full duplex 2-way
• Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP
• Call control signaling: VOIP; SIP Info (DTMF), RFC2833 (DTMF)
• Interfaces: 1 x LAN (PoE, IEEE 802.3af) and 1 x LAN (network access)
• Power: Power over Ethernet (IEEE802.3af, Class 0); local power option 12V DC (Idle 2W, Max 10W)
• Control features: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
• Auxiliary contacts: optional
• Programming: non-volatile flash memory; programming and configuration via Web GUI
• Outputs: 1 aux output (dry contact). Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC. Rated carry current: 1 A. Max switching voltage: 125 VAC, 30 VDC. Max switching current: 1 A
• Echo cancellation: ITU-T G.167 / G.168
• Remote capabilities: remote automatic software upgrade, centralized monitoring
