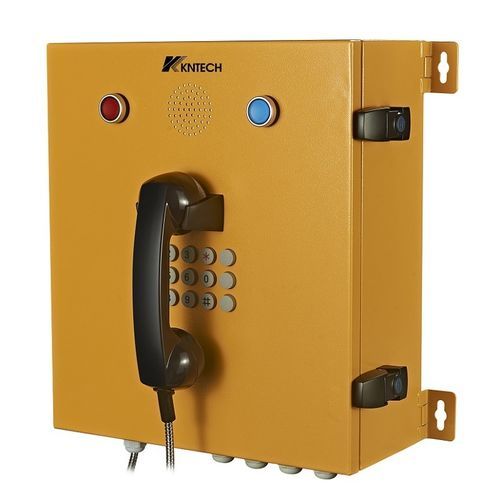

Промышленный телефон IP KNZD-87

EthernetIP66для туннеля

Product name
Fiber Optic Telephone

Model and Dimensions
Model: KNZD-87
Size: 350*400*163.2(mm)
Material: not specified

Features

• Full duplex communication.
• Supports access to two-wire/twisted pair slaves: 2/4/8/16 units (optional).
• Supports fiber self-healing ring network access.
• Adopts corrosion-resistant and vandal-resistant cold-rolled steel waterproof and dustproof casing to extend the product life cycle, improve product reliability and stability, and prevent vandalism and tampering of hardware.
• Wall-mounted, easy to install.
• Waterproof and dustproof grade IP66.
• With digital dialing keypad.
• 3 button programmable phone, support hotline dialing.
• 2 customized buttons (optional), support volume adjustment.
• Magnetic reed hook-switch.
• Heavy duty handset with hearing aid compatible receiver, noise canceling microphone.
• Handset with industrial strong armored cable.
• Silicon keypad keep waterproof and dusty proof.
• DC input over-voltage over-current protection and RJ45 surge protection.
• Temperature range from -40 degree to +70 degree.
• Support echo cancellation.
• Remote software upgrade, configuration and monitoring.
• Optional 7 minutes limited call (upon buyer's requirement).
• Powder coated in UV stabilized polyester finish, defaulted color yellow.
• Application: pipeline corridor, power, tunnel, metro, railway, light rail, highway, steel plant, ship, offshore, mine, power plant, bridge, etc.

Application
Suitable for pipeline corridor, power, tunnel, metro, railway, light rail, highway, steel plant, ship, offshore, mine, power plant, bridge and similar harsh environments.

caractéristiques / spécifications techniques

• Model: KNZD-87
• Dimensions: 350 x 400 x 163.2 mm
• Protection: IP66 (waterproof and dustproof)
• Enclosure: corrosion-resistant, vandal-resistant cold-rolled steel (powder coated UV stabilized polyester, default yellow)
• Communication: full duplex; supports fiber self-healing ring network
• Slave support: two-wire/twisted pair slaves (2/4/8/16 units optional)
• Keypad: digital dialing keypad; silicon keypad for waterproof/dustproof
• Programmable keys: 3 programmable buttons standard; 2 additional customized buttons optional; supports hotline dialing and volume adjustment
• Handset: heavy duty with hearing-aid compatible receiver, noise-canceling microphone, industrial armored cable
• Hook switch: magnetic reed
• Protection features: DC input over-voltage and over-current protection; RJ45 surge protection
• Audio: echo cancellation supported
• Management: remote software upgrade, configuration and monitoring supported
• Optional feature: 7-minute call limit (on request)
• Operating temperature: -40 degree to +70 degree
