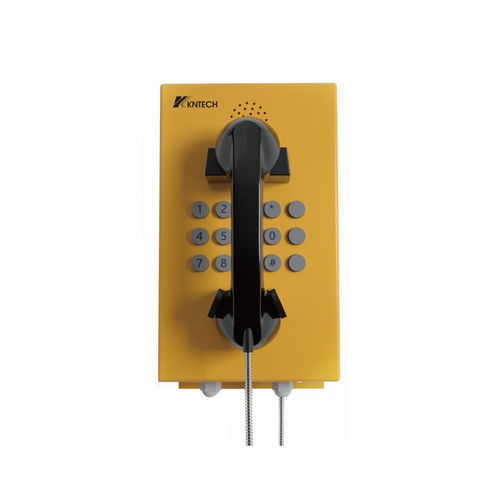

Аналоговый промышленный телефон KNSZ-11

протокол VoIPIP66для туннеля

Product
Waterproof Tunnel Telephone

Overview
Model: KNSZ-11
Size: 250*165*142.6(mm)
Material: Cold-roll steel sheet

Key Functional Features & Benefits

• Cold-roll steel sheet, vandal & tamper-resistant hardware, easy installation.
• Waterproof rating IP66, dust proof.
• Full keypad with memory; 3-button programmable telephone; supports hotline dialing.
• Heavy duty handset with hearing-aid compatible receiver and noise-canceling microphone.
• Handset with industrial strong armored cord.
• Silicone keypad keeps waterproof and dust proof.
• Service temperature range: -40° to +75°.
• Magnetic reed hook-switch; telephone line powered.
• Lightning protection to ITU-T recommendation K.21.
• Phone integrity wiring to enable system monitoring of unit operational status (if PBX supports it).
• Optional 7-minute timeout to release the line if handset left off-hook (on buyer's requirement).
• Applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Installation
Designed for easy installation in tunnel/outdoor environments; mounting and installation dimensions are provided in the product documentation and drawings.

Dimensions
Overall size: 250 x 165 x 142.6 mm (detailed dimension drawings available in product materials).

Certification

• EN55022 (emissions), EN55024 (immunity).
• Ingress Protection: GB4208-93 IP66; FCC; ITU-T Recommendation K.21.
• EMC: EN50121 (Railway application - Electromagnetic Compatibility).

Analogue Specification

• PSTN analogue telephone.
• DTMF dialing.
• MTBF: 100,000 hours.
• MTTR: 2 hours.
• Connection: RJ11 screw terminal pair cable (or RJ11 socket/plug upon request).
• Applicable to various SPC exchange, PABX and dispatching exchange systems with feeding voltage 33-60V.
• Ambient temperature: -30° ~ +60°. Relative humidity: 10% ~ 95%. Atmospheric pressure: 86 ~ 106 KPa. Circumstance noise: less than 60 dB(A).
• Sound level of ringing: over 70 dB(A).
• Standard frequency: low group 697, 770, 852, 941 Hz; high group 1209, 1336, 1477 Hz; frequency deviation -1.5% ~ +1.5%.
• Call transmission index (5KM): SLR < 12, RLR < -1, STMR > 10; output impedance 600 Ohm; maximum distance 7 KM.
• Memory dialing: up to 12 groups stored, max 16 digits per number.

VoIP Specification
VoIP-specific technical details are provided by the manufacturer in the VoIP specification materials.

Caractéristiques / spécifications techniques

• Model: KNSZ-11
• Dimensions: 250 x 165 x 142.6 mm
• Enclosure material: Cold-roll steel sheet
• Ingress protection: IP66
• Operating temperature range: -40° to +75° (service); analogue ambient spec -30° to +60°
• Keypad: Full silicone keypad, memory support, 3 programmable buttons
• Handset: Heavy-duty, hearing-aid compatible receiver, noise-canceling microphone, armored cord
• Power: Telephone line powered (analogue); compatible with PABX feeding voltage 33-60V
• Connections: RJ11 screw terminal pair cable (or RJ11 socket/plug on request)
• Lightning protection: ITU-T K.21
• Ringing level: >70 dB(A)
• MTBF/MTTR: 100,000 hours / 2 hours
• Memory dialing capacity: 12 groups, max 16 digits each
• Typical applications: Tunnels, metro, railway, LRT, highways, marine/offshore, mining, power plants, bridges
