Настенный генератор горячего воздуха Lodos 35

газовый

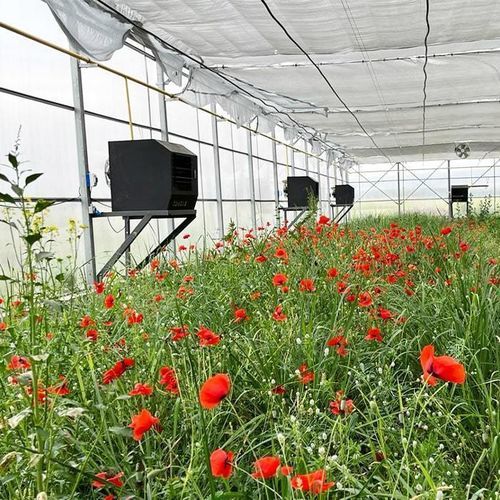

Daygas combines efficient, economical, high-quality, and functional products that place great emphasis on innovation, research, and development, thereby saving energy in the heating sector for end users.Silent operation.Quick start.Cooling mode.Low emission level.Low energy consumption.High safety level.System of safety gas valves.Step and image notification of malfunction on the display screen.Increased efficiency thanks to specially designed boiler construction.Possibility of remote-controlled 5-step or thermostatic mode.Technical Specifications:Power35kWGas consumptionNG 3.33m³/h / LPG 2.46 kg/hDimensions660h / 660L / 820wWeightNet 49.00kg / Gross 54.00kgOperating pressureNG 21-55mbar / LPG 32-55mbarHeating area, m²min 176m² / avg 220m² / max 264m²Heating area, m³min 528m³ / avg 660m³ / max 792m³Noise level in empty room55 d-BANoise level in working room43 d-BAAir output m³3500m³Electrical connection (EU):190-260 V / 50-60 HzGas connectionG ¾’’Uniform Heat DistributionLodos hot air generators, with their advanced burner design, emit minimal exhaust gas and directly heat the area where the event is held. The heat generated in the ribbed heat exchangers with increased efficiency is transferred directly to the environment via an axial fan, ensuring the most homogeneous heat distribution.Compact DesignLodos hot air generators by Daygas provide thermal energy obtained from natural gas or liquefied petroleum gas by supplying hot air directly or through air ducts into the heated environment using a built-in fan. These generators offer high efficiency and low energy consumption thanks to their specially designed boiler construction. They are among the quietest in operation due to their specially designed boiler and body construction. Recommended for use in enclosed spaces with ceiling heights not exceeding 5 meters for more effective and uniform heating.Possibility of operation in hermetic and semi-hermetic versions.All electrical components are made of high-temperature-resistant, non-flammable silicone cables.All metal parts are made of durable aluminum-silicon alloy, resistant to high temperatures.Device Control ElementsRemote control.Integration via control board.Pako manual control switch.Automatic control with thermostat switching.Integration into automation systems (SCADA control).Various control scenarios, offered as 5 different alternatives, allow you to manage products correctly and as desired, ensuring both fuel savings and long-term uninterrupted operation.In the BMS system:Device operation scheduling for specified days and hours.Operation of heaters with regional or individual step and modulation control.Viewing error codes from devices in the system and identifying which device has a problem, storing them in memory.Functional control elements such as instant, daily, weekly, or monthly fuel consumption monitoring.Control PanelPassword protection.Heat saving mode.Computer connection port.Graphic LCD screen 128 x 64.Anti-freeze protection function.Programmable 24/7 function.Automatic and manual control capability.Possibility to connect an external temperature sensor.Control of up to 8 independent zones and 32 devices in total.This simplifies your work with various commands, from device management to switching on and off on weekdays and at convenient times, to maintain the ambient temperature within the range set for freeze protection when the facility is closed.Analog Room ThermostatThe Daygas analog room thermostat turns off when the set temperature is reached, automatically switching off the device. When the ambient temperature drops below the set value, the device automatically turns on at maximum level, thus saving fuel.Temperature SensorAnti-freeze protection mode.Smooth control capability.Temperature adjustment via the device.When your devices approach the temperature you programmed with the Daygas temperature sensor, it ensures fuel savings by reducing the device's modulation value depending on weather conditions. When the ambient temperature reaches the desired value, the device automatically turns off, and when the temperature drops below the desired value, it automatically sets the most suitable temperature for the environment and resumes operation.Pako Switched Manual ControlStepwise manual control via the Pako switch can be provided. Where there is no remote control or it is not needed and a more local solution is required, the device can be controlled at the required level using the Pako switch.Remote ControlDaygas remote controls have 3 buttons and simple functions, offering easy use. All Daygas products can be controlled remotely with a single remote control.Silent operationQuick startCooling modeLow emission levelLow energy consumptionHigh safety levelSystem of safety gas valvesStep and image notification of malfunction on the display screenIncreased efficiency thanks to specially designed boiler constructionPossibility of remote-controlled 5-step or thermostatic modeTechnical Specifications:Power: 35kWGas consumption: NG 3.33m³/h / LPG 2.46 kg/hDimensions: 660h / 660L / 820wWeight: Net 49.00kg / Gross 54.00kgOperating pressure: NG 21-55mbar / LPG 32-55mbarHeating area, m²: min 176m² / avg 220m² / max 264m²Heating area, m³: min 528m³ / avg 660m³ / max 792m³Noise level in empty room: 55 d-BANoise level in working room: 43 d-BAAir output: 3500m³Electrical connection (EU): 190-260 V / 50-60 HzGas connection: G ¾’’
