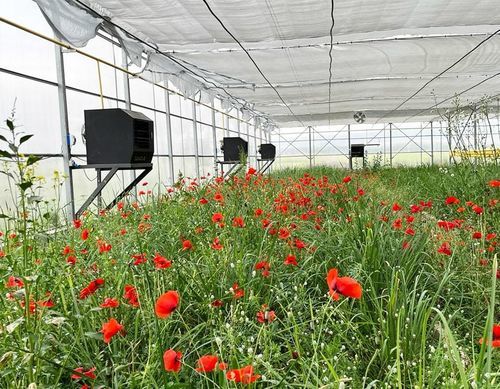

Настенный генератор горячего воздуха Lodos 70

газовыйдля применения в сельском хозяйстве

Daygas brings together efficient, economical, high-quality, and functional products that place great emphasis on innovation, research, and development, thereby saving energy in the heating sector for end users.Silent operation.Fast start-up.Cooling mode.Low emission level.Low energy consumption.High safety level.System of safety gas valves.Step and display notification of malfunction on the display screen.Increased efficiency thanks to specially designed boiler construction.Possibility of remote-controlled 5-step or thermostatic mode.Power69.7 kWGas consumptionNG 6.65 m³/h / LPG 4.92 kg/hDimensions790h / 1057L / 842wWeightNet 103.25 kg / Gross 124.04 kgOperating pressureNG 21-55 mbar / LPG 32-55 mbarHeating area, m²min 350 m² / avg 420 m² / max 505 m²Heating volume, m³min 820 m³ / avg 1290 m³ / max 1532 m³Noise level in empty room62 d-BANoise level in working room50 d-BAAir output m³6900 m³Electrical connection (EU):190-260 V / 50-60 HzGas connectionG ¾''Uniform Heat Distribution & Compact DesignLodos hot air generators, with their advanced burner design that emits minimal exhaust gas, directly heat the area where the event is to be held. The heat generated in the highly efficient finned heat exchangers is transferred directly to the environment via an axial fan, ensuring the most homogeneous heat distribution.Lodos Hot Air GeneratorsDaygas Lodos hot air generators are devices that provide thermal energy obtained from natural gas or liquefied petroleum gas by supplying hot air directly or through air ducts into the heated environment using a built-in fan. They offer high efficiency and low energy consumption thanks to their specially designed boiler construction. This product has the lowest noise level during operation due to its specially designed boiler and body construction. It operates more quietly than its counterparts. Due to the upward movement of heated air, hot air generators are recommended for use in closed spaces with ceiling heights not exceeding 5 m to ensure more efficient and uniform heating.Possibility of operation in hermetic and semi-hermetic versions.All electrical components are made of high-temperature-resistant, non-flammable silicone cables.All metal parts are made of high-temperature-resistant, durable aluminum-silicon alloy.Device Control ElementsThere are various scenarios and control elements associated with device management. The main options are:Remote control.Integration via control board.Pako manual control switch.Automatic control with thermostat switching.Integration into automation systems (SCADA control).The variety of control scenarios offered as 5 different alternatives allows you to manage products correctly and as desired. By evaluating the use of devices on-site and the conditions of the location, the most suitable control scenario is selected. Therefore, management with the correct scenario ensures both fuel savings and long-term uninterrupted operation, allowing for easy operation.Integration into Automation System (SCADA Control)Our devices can be directly connected to building automation systems (BMS) with Modbus communication protocol via RS485 port (internal). It can be integrated, or if there is no available BMS, device management via HMI touch panel or PC can be performed locally. It can be used fully automatically from the center.Device operation schedule for specified days and hours.Operation of heaters with regional or individual step and modulation control.Viewing fault codes from devices in the system and identifying which device has a problem, saving them in memory.Functional control elements such as instant, daily, weekly, or monthly fuel consumption monitoring.Control PanelPassword protection.Heat saving mode.Computer communication port.Graphic LCD screen 128 x 64.Anti-freeze protection function.24/7 programmable function.Possibility of automatic and manual control.Possibility to connect an external temperature sensor.Control of up to 8 independent zones and 32 devices in total.This simplifies your work with various commands, from device management to switching on and off on weekdays and at convenient times, to maintain the ambient temperature within the range set for freeze protection when the facility is closed.Analog Room ThermostatThe Daygas analog room thermostat turns off when the set temperature is reached. It automatically turns off the device, after which the ambient temperature reaches the desired value. When it drops below the set level, the device automatically turns on at maximum level and resumes operation, thus saving fuel.Temperature SensorAnti-freeze protection mode.Smooth control capability.Temperature adjustment via device.When your devices approach the temperature you programmed with the Daygas temperature sensor, it ensures fuel savings by reducing the device's modulation value depending on weather conditions. When the ambient temperature reaches the desired value, the device automatically turns off, and when the temperature drops below the desired value, the device automatically sets the most suitable temperature for the environment and resumes operation.Pako Switched Manual ControlStepwise manual control via Pako switch can be provided. Where there is no control panel or it is not needed and a more local solution is required, the device can be controlled at the required level using the Pako switch.Remote ControlDaygas remote controls have 3 buttons and simple functions. These are control devices that offer easy use. With the Daygas remote control, all device functions such as on/off, heating up/down, and reset can be easily controlled. All Daygas products can be controlled remotely with a single remote.Possibility of remote and manual control.Possibility to connect an external temperature sensor.Control of up to 8 independent zones and 32 devices in total.Technical Specifications:Power: 69.7 kWGas consumption: NG 6.65 m³/h / LPG 4.92 kg/hDimensions: 790h / 1057L / 842wWeight: Net 103.25 kg / Gross 124.04 kgOperating pressure: NG 21-55 mbar / LPG 32-55 mbarHeating area: min 350 m² / avg 420 m² / max 505 m²Heating volume: min 820 m³ / avg 1290 m³ / max 1532 m³Noise level in empty room: 62 d-BANoise level in working room: 50 d-BAAir output: 6900 m³Electrical connection (EU): 190-260 V / 50-60 HzGas connection: G ¾''
