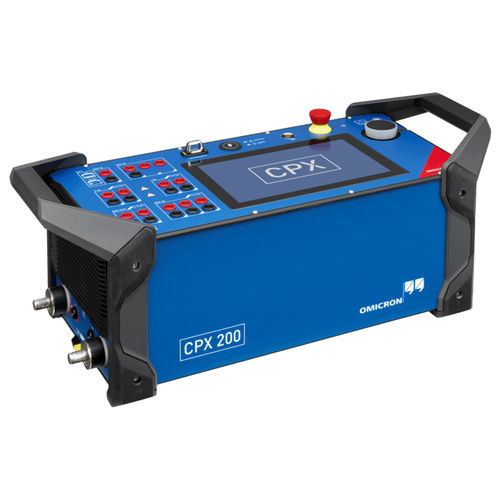

Испытательное устройство напряжения CPX 200

токарабочих характеристикавтоматизированное

Compact multifunctional test device for commissioning, maintenance, and condition assessment of medium and high voltage equipment.CPX 200 – Revolutionary ExcellenceCPX 200 is designed to address today’s challenges and tomorrow’s problems in power systems. Compact, powerful, and exceptionally safe, it sets a new benchmark for next-generation multifunctional testing. Developed in accordance with international standards, the CPX 200 meets all modern safety and cybersecurity requirements. It is ideal for substation commissioning and diagnostic testing of medium and high voltage equipment. All system components—hardware, software, and accessories—offer unmatched performance, ensuring long service life and high efficiency.Key Features:Testing of power transformers, instrument transformers, and switchgearExtended application range thanks to built-in high current module and compact HVX10 high voltage sourceAdjustable accessories with Click&Play systemVarious transport options: backpack or transport caseControlled testing with customizable CPXpert PC softwareFast operation with CPX TouchControlEfficient analysis via the advanced CORTEX Grid cloud systemEase of Use:Combined measurement channels simplify connectionTrue three-phase voltage sourceColor multi-touch screen with automatic brightness adjustmentGuided testing based on equipment nameplate dataTesting of various equipment types in a single user interfaceComplete and automatic documentation of test resultsOptimized test plans and full reporting cycleHigh Power:1000 A AC/DC with high current module10 kV AC/DC with HVX10Test frequency range: 1–600 Hz and DCHigh measurement accuracyDesigned with Safety in Mind:Red/green signal indicatorsEmergency stop buttonINTERLOCK keyWorkflow according to EN 50191Connection hints with light indicatorsOptional accessory: external signal lamp (coming soon)Maximum Performance, Minimal Size:All tests can be performed with a total system weight up to 30 kgCPX 200: 10.6 kgHigh current module: 3.3 kgHVX10: 14.8 kgForget about heavy lifting and weight restrictions thanks to the lightweight systemOne Device – Unlimited Possibilities:With CPX 200, you always have a reliable and safe device for commissioning, maintenance, and regular condition checks of medium and high voltage equipment at hand.Applications:Universal: Quick test, insulation resistance, power factor/tan deltaInstrument Transformer: Transformation ratio, transformation ratio U, low-power instrument transformer ratio, knee point, winding resistance, load, polarity, insulation resistance, power factor/tan deltaPower Transformer: Turns ratio, winding resistance, demagnetization, short-circuit impedance/leakage reactance, insulation resistance, power factor/tan delta, magnetizing current (coming soon)Switchgear: Operating time, coil and motor current, static contact resistance, insulation resistance, power factor/tan deltaHVX10 – High Voltage System Component:HVX10 is a universal system component combining capacitance, power factor, tan delta, and insulation resistance measurements in one compact and lightweight device. The built-in universal high voltage source allows insulation condition assessment with minimal connection effort and in the shortest time. HVX10 uses optimized test procedures, combining frequency and voltage sweeps. The extremely wide frequency range (1–600 Hz) enables insulation condition assessment not only at the fundamental frequency. The test procedure also helps identify specific insulation issues such as moisture, premature aging, or voltage-dependent insulation properties. Thanks to the snap-in mechanism, HVX10 can be easily attached to and detached from the CPX 200.CPXpert – Guided Adaptive Testing:CPXpert software enables precise and efficient measurements. It provides engineers with tools for quick and hassle-free measurements using CPX 200. Flexible test procedures save time while ensuring high-quality results. Features include detailed pop-up hints, connection diagrams, built-in connection checks, and automatic evaluations, making testing simple and safe. CPXpert also allows workflow customization according to application type and test type for even greater efficiency.Advantages:Equipment-specific test programs, including connection diagramsAutomatic evaluation according to industry standardsAccess to the CORTEX Grid database via OMICRON Continuity (including your PTM database)Multi-window operation for testing multiple devices and feedersDesigned for accessibility: easy execution of comprehensive testsHigh-quality data sets using equipment nameplate dataCORTEX Grid – Unified Test Data, Centralized Access, and Full Control:CORTEX Grid is OMICRON’s new cloud system, key to optimizing test processes. It allows test specialists to conveniently integrate, prepare, and analyze test data. This optimized approach significantly increases efficiency, reduces workload, and provides a long-term data management strategy.Advantages:Seamless upload of test data to CORTEX Grid via OMICRON Cloud Link eliminates manual data entry, ensuring a fast, automated workflowTest files generated in OMICRON software and devices can be efficiently transferred with minimal effortOMICRON Cloud Link is designed to scale with your organization, supporting all processes from single file uploads to mass data migrationsEven without internet access, test files can be used locally, avoiding downtime and later synchronizing necessary information with CORTEX GridAccessories:CPOL3: Handheld polarity and connection testerHVX10: 10 kV AC/DC system componentExternal signal lamp (coming soon): Helps mark hazardous zonesHC Module: 1000 A AC/DC high current moduleBackpack: Lightweight carrying bags can be used separately or combined as a convenient backpackUniversal cable and clamp configurations: Choose the ideal test configuration with various cable lengths and connector typesTechnical Specifications / Features:Compact multifunctional test device for medium and high voltage equipmentMeets international safety and cybersecurity standardsBuilt-in high current and high voltage modules (1000 A AC/DC, 10 kV AC/DC)Test frequency range: 1–600 Hz and DCColor multi-touch screenAutomatic and complete test documentationLightweight system: total weight up to 30 kgModular design with Click&Play accessoriesGuided testing with CPXpert softwareCloud integration with CORTEX Grid
