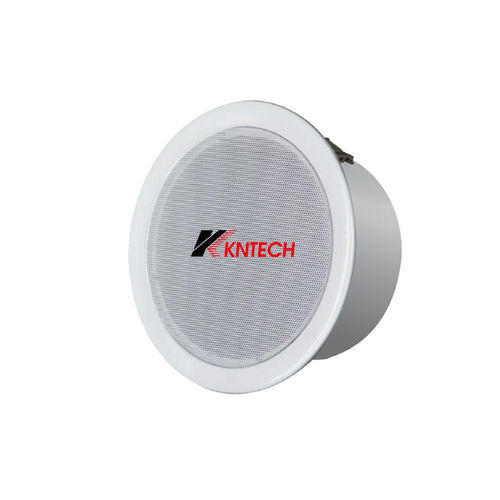

Потолочный громкоговоритель KNL9-A-6W

противопожарныйнепроизводственный

Overview
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features

• The loudspeaker shall incorporate a single 12 cm (5") full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
• The loudspeaker shall produce a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and shall be capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line) of power.
• The loudspeaker shall be fitted with a factory mounted transformer with easy selectable power tappings of 6W, 3W, 1.5W and 0.8W when using 100V Line and 3W, 1.5W, 0.8W and 0.4W when using 70V Line.
• Push-in-type connectors shall make cable connection quick and easy and shall allow bridge wiring when necessary.

Application
Conference rooms, cafes, churches, background music, entertainment venues, home theaters, etc.

Products Dimensions
197*165*98mm (dimension image available on product page)

Caractéristiques / spécifications techniques

• Model: KNL9-A-6W
• Size: 197*165*98mm
• Material: Metal and Fire Rated Metal Rear Cover
• Driver: 12 cm (5") full range cone-type transducer
• Frequency response: 80 Hz to 20 kHz (measured on axis)
• SPL: 90 dB on axis at 1 m with 1 W input
• Power taps: 100V Line — 6W, 3W, 1.5W, 0.8W; 70V Line — 3W, 1.5W, 0.8W, 0.4W
• Connector: Push-in-type connectors; supports bridge wiring
