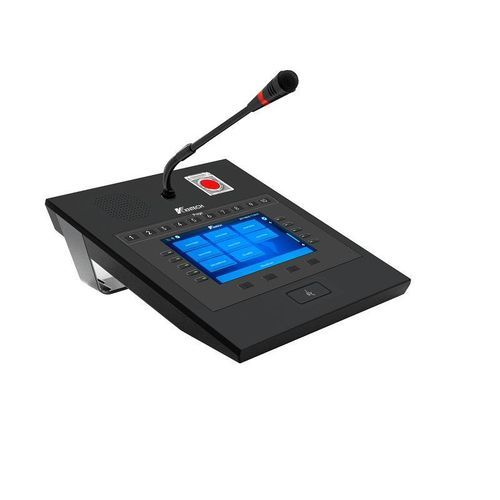

Терминал вызова IP KNPA800miniR

PoEEthernet4,3"

Product name
PA Call Station

Model
KNPA800miniR

Overview
Professional IP Network Paging Console designed for PAGA/PA systems and Safe Area control rooms and operation centers. Enables zone paging, emergency paging activation and system status monitoring for mission-critical communications.

Main features

• 100-zone one-touch paging with a covered red emergency key
• Gooseneck unidirectional microphone with PTT (momentary, non-locking)
• 4.3-inch TFT color display for zone selection, call status and fault indication
• 10 pages × 10 physical paging buttons (100-key paging console), 4 function keys, one main paging key and a guarded red emergency key under safety cover
• Built-in chime tone with configurable enable/disable
• Supports PoE operation to simplify installation
• Dual Ethernet ports for network redundancy
• Secure, encrypted communications using AES67 for audio and AES70 for control
• Supports user privilege control and configurable password policy
• Supports automated/scheduled announcements and pre-recorded message distribution
• Flexible zone/group/all-call paging plus group and multi-zone selection
• Background music (BGM) mixing and automatic ducking during paging
• Priority-based audio routing to ensure emergency announcements override lower-priority audio

Operational & usability benefits

• Engineered for continuous 24/7 operation with energy-saving standby features
• Intuitive user interface with vibrant 4.3" TFT for minimal training and fast operation
• Clear visual indicators for power, communication status and push-to-talk activation
• Zone conflict handling with predefined priority/occupancy policies (override/queue/restriction)
• Seamless integration of external audio via a 3.5 mm jack for wireless microphone input

System & integration
Supports secure access control and cybersecurity measures aligned with IEC 62443 requirements. Works with PAGA controllers/servers for encrypted control, external alarm indication and system integration. System monitoring includes power/communication/fault indication and supports fault acknowledge.

Applications
Designed for Safe Area control rooms and operation centers requiring mission-critical paging and emergency communications. For hazardous areas, IECEx/ATEX certified field paging stations/telephones should be used as required.

Caractéristiques / spécifications techniques

• Model: KNPA800miniR
• Size: 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Certifications: EN 54-16 and ISO 7240-16
• Display: 4.3" TFT color display showing zone selection, call status and system information
• Microphone: Gooseneck unidirectional microphone with PTT button (momentary, non-locking)
• Paging keys: 100-key paging console (10 pages × 10 physical buttons), 4 function keys, main paging key and red emergency key under safety cover
• Audio: AES67 for audio, parametric EQ configurable in software, adjustable mic sensitivity and volume control
• External audio input: 3.5 mm jack for wireless microphone input
• Network: Power over Ethernet (PoE) support; dual Ethernet ports for redundancy
• Built-in features: Chime tone (configurable), concurrent live paging (non-overlapping zones), BGM & live paging mixing with ducking
• Zone management: Zone-based paging, group-zone selection, all-call, automated scheduled announcements, and pre-recorded message playback
• Priority & conflict handling: Priority-based audio routing and zone conflict handling policies
• System monitoring: Power/communication/fault indication with acknowledge/mute support
• Mounting: Desktop / Wall mount / Flush (panel) mount (cut-out dimensions and mounting brackets optional)
• IP rating: Front panel protection IP22 (minimum, for indoor control room environment)
• Cybersecurity: Supports configurable user privileges/password policy and minimizing enabled ports/services per IEC 62443
• Area of use: Safe Area control room applications
