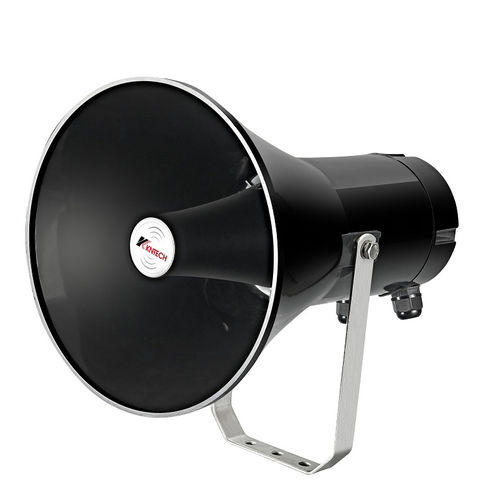

Установленный громкоговоритель на кронштейне KNSIPLB-Ex15

для опасных зонгерметичныйустойчивый к погодным катаклизмам

Product Overview
Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15 is a simple-to-install explosion-proof loudspeaker designed to provide clear, long-range speech for remote speaking in video surveillance and public address applications. It enables operators to remotely address people, deter unwanted activity, and play pre-recorded audio files when manually or automatically triggered by an alarm event. The unit integrates with Voice over IP (VoIP) telephone systems that use SIP (Session Initiation Protocol) and supports Power over Ethernet (PoE). It features a built-in amplifier, low power consumption, and can achieve a sound pressure level exceeding 92 dB. The speaker is a standalone unit allowing flexible, scalable, and cost-effective system design.

Key Features

• Explosion-proof speaker design certified by ATEX standard
• Material / Colour: Anti-static Polyamide / Black
• Waterproof and dust-proof rating: IP66
• Service temperature range: -40 °C to +55 °C
• Supports 360° lossless broadcast
• IP network horn speaker: explosion-proof and waterproof
• Suitable for public address and paging applications
• Applications include petroleum, metallurgy, chemical industry, offshore oil, nuclear power, shipbuilding, tunnels, and other projects requiring explosion-proof grade speaker

Functional Details
The loudspeaker can play pre-recorded audio files and allows users to upload custom audio. It connects directly to an IP network with a single network cable for communication and power (PoE). The built-in amplifier and efficient design deliver high sound pressure while keeping power consumption low. The appearance of speaker molds is the same across types; differences relate to whether a built-in transformer is included.

Product Packing

• Unit size: 250 (∅) * 352 (L) mm
• Unit G.W.: 3.7 kg
• 1 pcs in an inside box. Box size: 270 x 270 x 390 mm. G.W.: 3.7 kg
• 2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm. G.W.: 7.8 kg

Additional Information
Type description: The appearance of the speaker molds is the same; the difference is whether a built-in transformer is present or not.

Application
Designed for hazardous and industrial environments where explosion-proof equipment is required; typical sectors include oil & gas, chemical, metallurgy, offshore platforms, nuclear facilities, shipbuilding, tunnels, and other heavy industries.

Caractéristiques / spécifications techniques

• Model: KNSIPLB-Ex15
• Size (product): 413 * 254 * 277 mm
• Material: Anti-static Polyamide
• Colour: Black
• Waterproof / Dust proof Rating: IP66
• Operating Temperature Range: -40 °C to +55 °C
• Sound Pressure: exceeds 92 dB (typical, depending on installation)
• Network: SIP (VoIP) compatible, supports PoE
• Built-in amplifier: Yes
• Broadcast: 360° lossless broadcast capability
• Packing weight and dimensions as listed in Product Packing
