Традиционный роторный стол 60Z

горизонтальныйвертикальныйполый

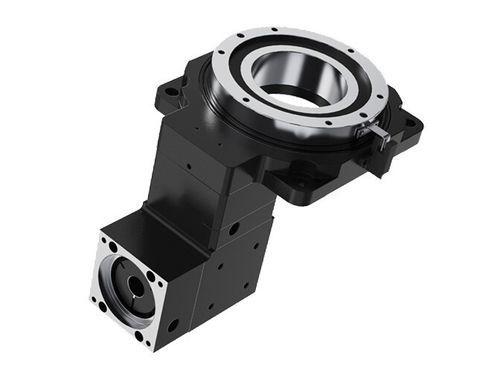

IntroductionRight-angle hollow rotary table is an advanced version of the standard hollow rotary table, featuring a built-in right-angle bevel gear to change the orientation of the input signal for space optimization. Its hollow structure allows pipelines (such as air pipes, electric cables) to pass through the center of the rotary table, solving the cable entanglement problem typical of traditional rotary mechanisms. Driven by a servo motor, the platform uses a reducer or worm gear to achieve high-precision angular control, providing exceptional rigidity and repeat positioning accuracy.FeaturesHollow Design(a) The central hollow channel facilitates the transmission of media (air/liquid/electricity), simplifying equipment layout.(b) The side motor interface prevents interference between pipelines and moving components.Integrated Right-Angle Bevel Gear ReducerChanges the input direction to optimize space utilization.High Support RigidityPrecision cross-roller bearings with preloaded rollers at 90° withstand radial, axial, and overturning loads, providing rigidity 5-10 times higher than conventional bearings.High Rotational AccuracyThe rotary table undergoes secondary grinding to ensure strict geometric tolerances (concentricity, parallelism), achieving superior rotational accuracy.Flexible Compatibility(a) Compatible with any brand of servo/stepper motors; supports non-standard flanges and shaft interfaces.(b) Modular design allows horizontal/vertical installation for enhanced scalability.SpecificationsRight-Angle Hollow Rotary ActuatorsModel60Z85Z-0585Z-10130Z170Z-10200Z280ZReduction Ratio1015101520302030203050203050203050Hollow Bore Diametermmφ28φ33φ33φ62φ72φ100φ150Rated Output TorqueN·m5 N·m18 N·m18 N·m3455 N·m55 N·m55 N·mMax SpeedRPM200rpm200rpm200rpm200rpm200rpm200rpm200rpmRepeat Positioning AccuracyArcsec±15 arcsec±15 arcsec±15 arcsec±15 arcsec±15 arcsec±15 arcsec±15 arcsecAllowable Axial LoadN150N300N500N2000N2000N4000N7000NAllowable Radial LoadN300N200N250N1200N1200N2500N3500NTable Parallelismmm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mmFace Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mmOuter Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mmMoment of Inertiakg·m²735x10-7 kg·m²1203x10-6 kg·m²1203x10-6 kg·m²2772x10-6 kg·m²27619x10-6 kg·m²27619x10-6 kg·m²361220x10-6 kg·m²Positioning AccuracyArcsec≤30 arcsec≤30 arcsec≤30 arcsec≤30 arcsec≤30 arcsec≤30 arcsec≤30 arcsecOperating Temperature°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°CService Lifeh20000h20000h20000h20000h20000h20000h20000hProtection RatingIPIP40IP40IP40IP40IP40IP40IP40Noise LeveldB≤65 dB≤65 dB≤65 dB≤65 dB≤65 dB≤65 dB≤65 dBProduct Type: Right-Angle Hollow Rotary TableDrive: Servo motor, reducer or worm gearApplications: Automation, robotics, precise positioning systems
