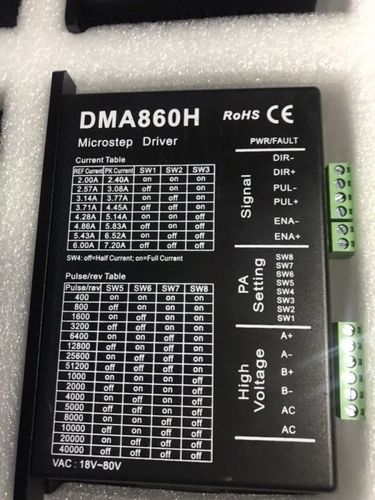

Шаговое управление двигателем DMA860H

Постоянный токBLDCшаговое 2-фазное

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 20-110VAC 7A.Subdivision range: 400~40000ppr.Signal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatible.Pulse response frequency: 200KHz.Automatic setting of power on parameters.Precision current control reduces the heating of the motor.Product Details1. Electrical index2. Interface definition3. Driver signal mode settingThe DMA860H driver’s signal mode is set by 3 jumpers on the PCB board.4. Driver wiring diagramTechnical Specifications / FeaturesDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-110VAC 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor
