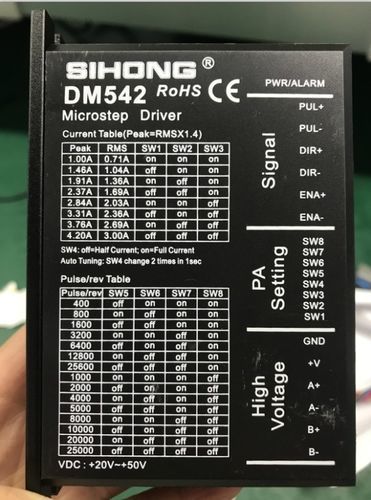

Шаговое управление двигателем DM542

BLDCшаговое 2-фазное

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 20-50 VDC.Current maximum: 4.2A.Subdivision range: 400~25000ppr.Signal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatible.Pulse response frequency: 200KHz.Automatic setting of power on parameters.Precision current control reduces the heating of the motor.Product Details:Electrical indexA: Power interfaceDial code setting1) Operating current settingTechnical Specifications:Drive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-50 VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces motor heating
