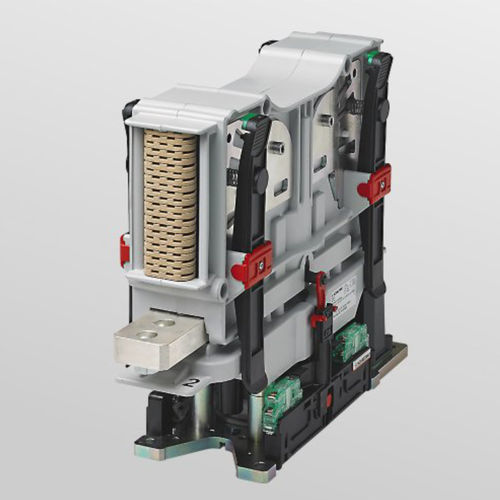

With the CP series Schaltbau is introducing an innovative concept to the switchgear market. The arc-handling is done exclusively by permanent-magnetic blowout. This patented technology ensures fully bi-directional breaking capability and a more compact design. For the first time the universal devices can be configured as NO/NC contactor, disconnector or changeover switch. This enables us to react flexibly to changing customer requirements.
Features
Innovative Design
Easily configurable as NO/NC contactor, disconnector or changeover switch
DC bi-directional or AC up to 60 Hz max.
Exclusively permanent-magnetic blowout – no critical currents and low wear of main contact system thanks to effective arc-handling
High making capacity, also as disconnector and changeover switch
Low total cost of ownership, modular and compact
Main contact system
Conventional thermal current: 600 A/ 1,200 A/ 2,000 A
Nominal voltage: 1,5 kV, 3 kV
Double-break contacts
1 pole versions
