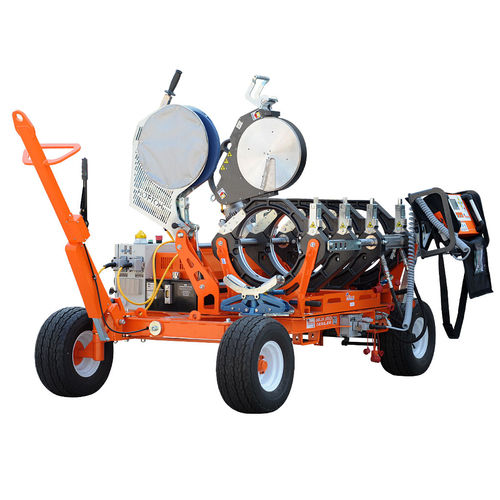

Станок для сварки для стыков DELTA 355 TRAILER

автоматическийдля пластикового шланга

DELTA 355 TRAILER welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids under pressure from 125 mm to 355 mm or from 4” IPS to 14” IPS. It is designed to work according to welding standard ISO 21307 High Pressure. Machine composition: - Removable control panel with data-logging, memory up to 4000 welding reports, GPS treacebility; USB port for welding report / data download / firmware upgrade. Easy-life welding control system: hardware and software have been developed to interact to each other sharing data during the entire workflow. Once set the welding parameters up, the system guarantees the repetition of the welding cycle, avoiding errors. The operator only have to confirm the work phases on the just pushing a button. Possibility to pre-set 20 customized - Chassis is equipped with front steering wheels; parking brake, machine frame design for forklift lifting - Removable machine body to work in tight spaces with shavings collection tray - Dragging bar designed to weld between the 3rd and 4th clamp - Ritmo patented insert quick release SMARTLOCK SYSTEM - On-board electrical milling cutter with integrated locking handle system, safety switch-off device, motor thermic protection and gas spring to easily lift/lower the facer - On-board heating plate with protection frame and insulated protection bag; gas-spring for easy lift/lower the heating plate - Heating plate and facer locking system for safe transportation - Two hydraulic rollers for pipe loading and unloading
