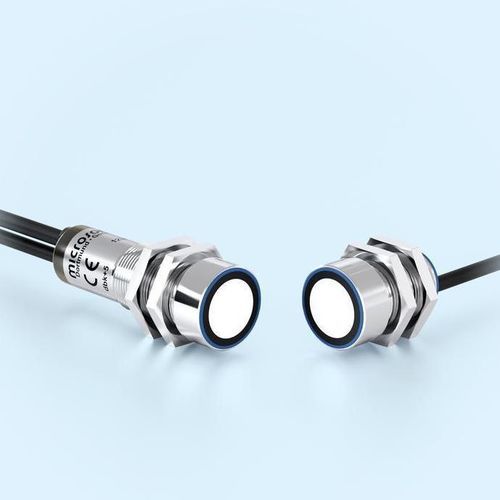

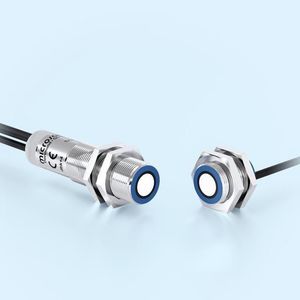

The dbk+5 ultrasonic double-sheet control
is designed for scanning thin sheet metal, plastic sheets and corrugated card with thicknesses exceeding the working range of the dbk+4 sensors. The principle behind the operation is the same as for the dbk+4 sensors. The main difference between the systems lies in the materials to the detected.
하이라이트
High-performance ultrasonic double-sheet control especially for the probing of corrugated cardboard as well as plastic plates several mm thick
3 control inputs for Teach-in, trigger, and external sensitivity settings for the material
Teach-in option e.g. for probing plates stuck together with an oil film
Compact design in M18 x 1 threaded tube
BASICS
Reliable detection of single and double sheets
No Teach-in needed (plug and play)
Double-sheet and missing-sheet output
Working distance between the transmitter and the receiver selectable from 30 to 70 mm
Trigger option for applications in warehouse flow
LinkControl for configuration of sensors from a PC
