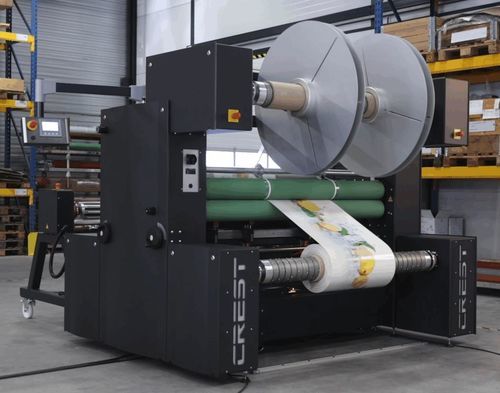

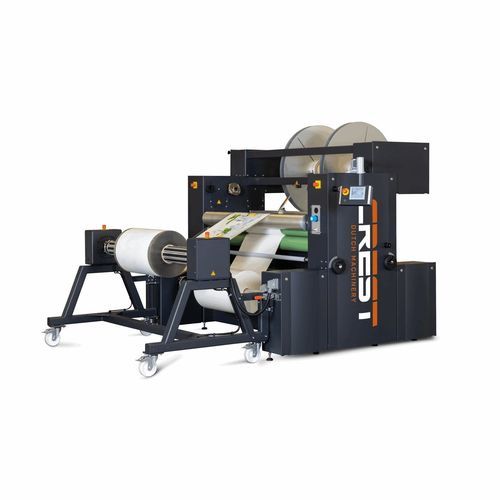

Ламинационная машина рулон-к-рулону R2R

автоматизированнаяс продольно-резательным станкомпромышленная

Overview
The Crest R2R Laminator Slitter combines protective and functional lamination, heavy-duty shear-cut trimming and precision tension-controlled rewinding in a single continuous workflow. One pass delivers a finished roll from unwind through lamination, trimming and rewind. Originally engineered for printed PET on self-adhesive PE foam and thin PVC and configurable for a broad range of printed roll materials and converting requirements.

Three functions

• Laminate — apply protective films and functional layers in one workflow; adjustable, heatable laminating rollers handle a wide range of substrates and adhesive systems, including self-adhesive PE foam and thin PVC backing.
• Trim — heavy-duty pneumatic shear-cut trimming that cleanly cuts thick and rigid substrates (including PVC) without cracking or deforming the material, delivering a precise finished width.
• Rewind — automated web tension regulation via a closed feedback loop from unwind through rewind; high torque on the unwind for rigid substrates and controlled, delicate handling at the rewind to protect print and laminate quality.

Suitable materials

• Printed wallcoverings
• Decorative wallpapers
• Canvas prints
• Banner media
• Floor graphics
• UV-cured, latex, solvent & eco-solvent prints
• Self-adhesive vinyl
• Foam backing layers
• Specialty printed roll materials

Typical applications

• Print finishing & sticker production — converting printed PVC and PET onto self-adhesive PE foam or thin PVC; suitable for sticker, decal, vehicle wrap and industrial label converters.
• Wide format & decorative roll media — wallcoverings, canvas, banners and floor graphics finishing.
• Custom configurations for specialty printed roll materials and technical substrates where standard configurations do not apply.

Key features

• Integrated roll-to-roll platform combining lamination, shear-cut trimming and tension-controlled rewinding in one pass.
• Automated closed-loop web tension control across unwind, lamination, trimming and rewind positions; wide, precisely regulated tension range.
• High-torque unwind for rigid substrates and controlled low-tension rewind for delicate media.
• Heavy-duty pneumatic shear-cut trimming for tough substrates.
• Adjustable, heatable laminating rollers to handle diverse substrates and adhesive systems.
• Configurable web width, lamination setup, trimming configuration and backing application to fit production process and material type.
• Industrial-grade construction designed for continuous production and both heavy-duty and delicate substrates.
• PLC + HMI control for machine operation and process control.

Warranty
A 5-year warranty applies provided a service agreement is in place.

Caractéristiques / spécifications techniques

• Product name / model: R2R Laminator Slitter
• Functions: Lamination, heavy-duty shear-cut trimming, precision tension-controlled rewinding (integrated single-pass workflow)
• Control: PLC + HMI
• Tension control: automated closed-loop web tension regulation across all winding positions
• Unwind torque: high torque available for rigid substrates (e.g., thick PVC)
• Rewind handling: precision, low-tension rewind to protect print and laminate
• Lamination rollers: adjustable and heatable to accommodate multiple substrates and adhesive systems
• Trimming: pneumatic shear-cut trimming suitable for heavy-duty substrates
• Configuration: platform configurable by web width, lamination setup, trimming configuration and backing application to match production process
• Intended for: printed PVC, PET, self-adhesive PE foam, thin PVC, UV-cured/latex/solvent/eco-solvent prints, wallcoverings, canvas, banners, floor graphics and specialty printed roll materials
• Warranty: 5 years (subject to service agreement)
