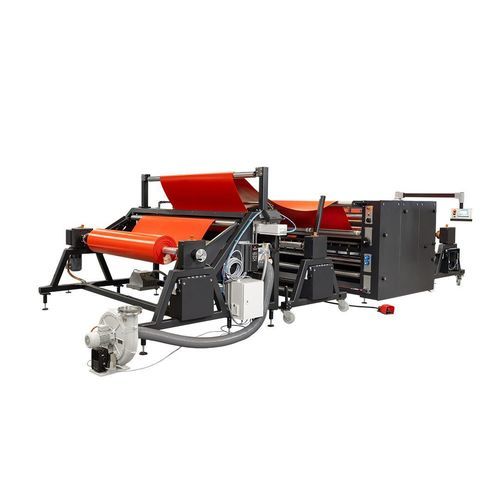

Ламинационная машина в рулонах WSL

рулон-к-рулонурулон-к-рулонупромышленная

Overview
The Crest WSL is a high-precision industrial slitter rewinder and optional laminator designed for tension-sensitive converters of flexible films, specialty foams and composite laminates. It integrates pneumatic circular slitting, loop-controlled center winding and an optional inline lamination station (including an inline Corona treatment unit) to enable single-pass or dual-pass lamination and slitting workflows while preventing material deformation, telescoping and air inclusion.

Key features

• Pneumatic circular knives for accurate, burr-free slitting (crush-cutting) with fast, operator-friendly knife changeovers.
• Loop-controlled / closed-loop tension control and specialized center winding to ensure deformation-free winding and consistent roll quality.
• Optional integrated inline laminator enabling single-pass lamination or an optimized dual-pass workflow (foam activation + backing application).
• Inline Corona surface activation for improved adhesive anchoring on non-porous or specialty foam substrates.
• Dual-roller nip system for precise lamination with elimination of micro-air inclusions and homogeneous composite quality.
• Adjustable nip roll height and pressure for precise lamination control.
• Heavy-duty, jumbo-ready platform built for high uptime and rapid job changeovers.

Typical applications

• Slitting and laminating specialty foams without causing structural deformation or cell collapse.
• Manufacture of flexographic backing assemblies and high-bond adhesive laminates.
• Single-pass and multi-pass lamination workflows for high-value, tension-sensitive materials.
• High-volume converting operations requiring minimized scrap and maximized material yield.

Suitable materials

• Technical foam laminates (examples referenced: ProBAK®, Softprint®, Cushion-Mount™).
• Flexographic backing foams and compressible foams.
• Polyester (PET) and PVC plastic backing films.
• High-tack self-adhesive laminates, protective films and release liners.

Typical workflow (dual-pass example)
PASS 1: Foam activation & adhesive coating
The specialty foam is unwound, passed through the Corona Treatment Unit for surface activation, then a high-tack adhesive layer is laminated under precise nip pressure to guarantee a durable bond.

PASS 2: Plastic backing application & final slitting
The laminated adhesive foam is fed back in; the plastic backing film is applied (Corona unit off) and pneumatic circular knives perform final precision slitting to customer-specified widths while loop-controlled tension preserves roll integrity.

Performance benefits

• Maximized yield and minimized scrap via precise pneumatic slitting and responsive loop tensioning.
• Zero-defect composite quality through center-winding control and dual-roller lamination to remove micro-air inclusions.
• Heavy-duty industrial uptime with flexible 3" and 6" shaft handling and fast, toolless changeovers for short-run agility.

Frequently noted commercial/after-sales note
A multi-year warranty program is available under service agreement terms (manufacturer-provided warranty conditions specified by the manufacturer).

Caractéristiques / spécifications techniques

• Model name: WSL
• Tension control: loop-controlled / closed-loop tension system
• Slitting method: pneumatic circular knives (crush-cutting)
• Inline options: integrated laminator (optional), Corona surface treatment unit (optional)
• Lamination: dual-roller nip system for bubble-free lamination
• Working width: adjustable, stated up to 1650 mm and beyond
• Maximum master roll diameter: ø1200 mm
• Maximum master roll weight: 500 kg
• Core handling: quick-change chucks for 3-inch and 6-inch cores
• Platform: heavy-duty, jumbo-ready with center winding
• Changeovers: fast, operator-friendly knife changeover and shaft interchangeability
• Primary target materials: specialty foam laminates, PET/PVC backing films, high-tack adhesive laminates, protective films
• Primary use cases: single-pass and dual-pass lamination & slitting workflows for tension-sensitive materials
