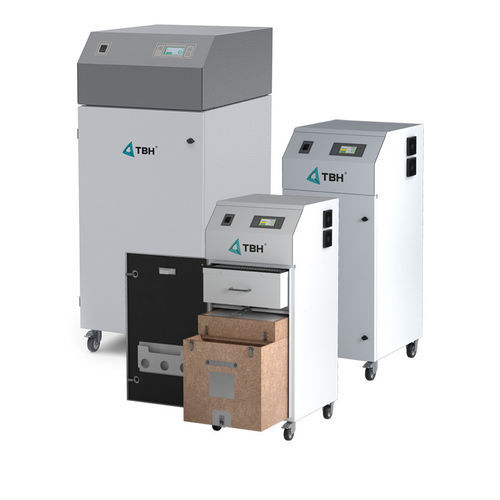

Мобильный дымоуловитель TFS 250

для промышленностидля сваркилазер

Overview
TFS 250 – Powerful extraction for laser marking and soldering processes. The TFS 250 was specially developed for laser marking, laser engraving, laser cutting and soldering workstations that require high negative pressure. According to the product text it achieves an air flow rate of 50 to 500 m³/h (marketing information), is compact, low-maintenance and intended for applications with long pipes or narrow cross-sections. The model will be W3 certified from Q3/2025. The TFS 250 is available as STANDARD or PLUS and can be optionally equipped with an extraction arm, spark arrestor or gravity separator.

Variants

• TFS 250 Standard: Filter configuration: SafeLine filter (F9), particle filter H14
• TFS 250 Plus: Filter configuration: SafeLine filter (F9), particle filter H14, activated carbon

Optional equipment

• Extraction arm
• Spark arrestor
• Gravity separator

Technical data (as shown on page)
Weight: 95 kg
Dimensions: 1050 × 480 × 540 cm
Air volume flow (marketing): 50 – 500 m³/h
Effective air volume flow: (not specified on page)
Max. static pressure: 15000 Pa
Voltage: 120/230 V
Frequency: 50/60 Hz
Engine power: marketing text states 1.8 kW motor; product attribute table lists 1,1 kW
Sound level: (not specified on page)
Serial interface: 25-pin Sub-D

Notes
Available as STANDARD or PLUS; W3 certification planned from Q3/2025.

caractéristiques / spécifications techniques

• Poids: 95 kg
• Dimensions: 1050 × 480 × 540 cm
• Débit d'air (marketing): 50–500 m³/h
• Pression statique max.: 15 000 Pa
• Tensions: 120/230 V
• Fréquence: 50/60 Hz
• Puissance moteur: 1,8 kW (mention marketing) et 1,1 kW (valeur présente dans la table technique)
• Interface série: 25-pin Sub-D
• Configurations filtres: STANDARD – SafeLine (F9) + particle filter H14; PLUS – SafeLine (F9) + particle filter H14 + activated carbon
• Options: extraction arm, spark arrestor, gravity separator
• Certification prévue: W3 (à partir de Q3/2025)
