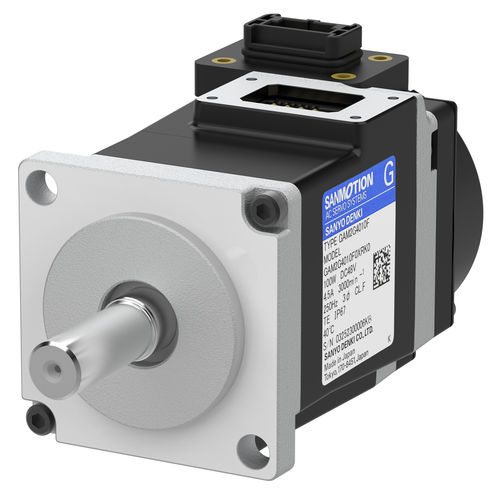

Серводвигатель DC SANMOTION G

48 Вкомпактныйс рамкой легкой конструкции

1. Evolved Servo Performance High responsiveness and effective vibration suppression enable fast, precise control, enhancing the productivity and processing quality of equipment. compared to our conventional products : • Speed frequency response: 2.2 times higher • Positioning settling time: 8 times shorter • Encoder resolution: 27 bit max. (battery-less) 2. Improved Reliability and Maintainability Various safety functions, such as protection against electronic component failures. The battery-less encoder eliminates the need for battery replacement, improving the reliability and maintainability of equipment. 3. Usable for Various Applications The expanded product lineup now includes 400 W servo motors, an increase from 200 W motors of the conventional products. 4. Usable in Various Environments Vibration resistance of the servo motor and amplifier has been improved two-fold and 20%, respectively, compared to the conventional products. The operating temperature range of the servo amplifier has been extended by 1.5 times, now covering from 0 to +60ºC. Also, the amplifier can be used at a high altitude of 2,000 m above sea level. - Eco- and User-Friendly - 1. Compact, Lightweight, and Energy-saving Design for SDGs Compared to the conventional products,the motor and amplifier have been made lighter by up to 5% and 9%, respectively, and the overall motor length has been shortened by up to 19%. Power loss of the motor and amplifier has been cut by up to 5% and 12.8%, respectively. 2. Easy and User-friendly Both servo motors and servo amplifiers are designed to be mounting-compatible with the conventional products for easy replacement
