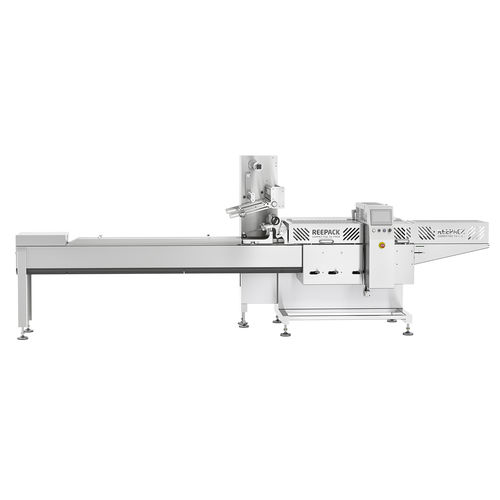

Автоматическая обверточная машина ReeFlow 100 series

для продуктов питанияс тоннелем для усадки

Hygienic, flexible and user friendly. The industrial solution for non stop production.: Main features: - Full Stainless steel cantilevered construction with ‘open frame’ frame design easy to access and clean. - Robust lugged infeed with fast and simple pitch changeover. - Driven reel shaft for film width 650 mm. Automatic film tensioning to process efficiently most of materials. - Standard photocell ‘No product No bag’, no more film waste. - x3 independents pairs of rollers, for for best longitudinal sealing quality. . (C- H- F) - Rotative 250mm jaws, production speed up to 120 ppm (400 ppm with VHS multiple jaws), fast and accurate. - Product discharge through 900 mm driven belt with adjustable small nose roller. - Schneider platform with friendly touch screen 10 “coloured display: Functional and Easily operated. - Full servo driven solution with 4 axis - Automatic format change and finest tuning. Made in compliance with the standard requirements of the fresh food industry. Film reel mounting position: Top Longitudinal sealing position: Bottom Transversal sealing system: Rotative motion Outfeed conveyor length: 825 mm Power supply: 400V 3/N/PE 50/60 Hz Power consumption: Up to 16 Kw Compressed air: 6 bar - 16 NL (per cycle) Bag width: Up to 250 mm Bag length: Up to 600 mm Max. product height: 150 mm Sealing width: 15 mm Human Interface: 7” colored touch-screen panel Fixed/ Adjustable Folding Boxes Printed Film Mark Gas flushing system Different sealing texture/width Zig-Zag cut for easy-opening Euro/Circular Hole
