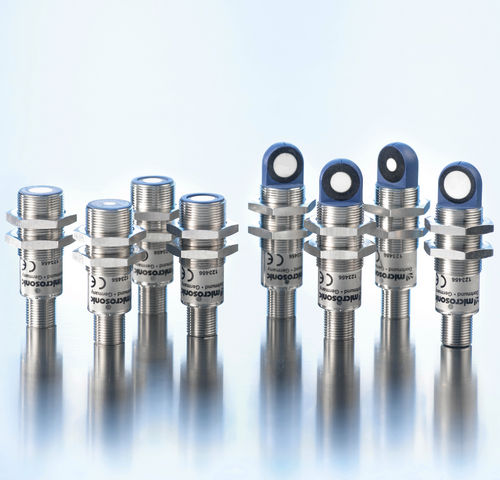

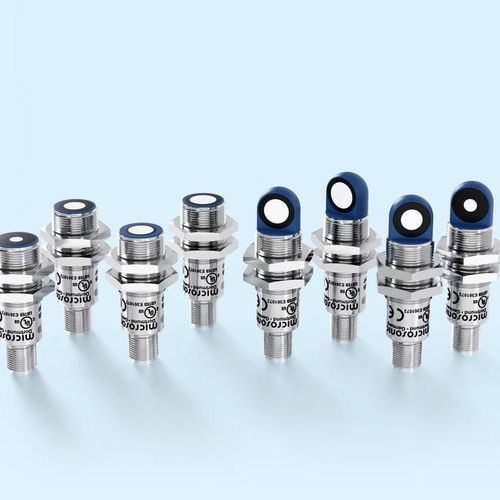

The pico+ ultrasonic sensors
are a compact series with M18 threaded sleeves and only 41 mm in housing length. In addition to the variants with an axial beam direction, there is also a housing variant with a 90° angled head and radial beam direction.
하이라이트
Variant with 90° angled head
IO-Link interface for support of the new industry standard
Automatic synchronisation and multiplex operation for simultaneous operation of up to ten sensors in close quarters
캐네디안, US 안전 기준 UL 인증 등록
BASICS
1 Push-Pull switching output pnp or npn basis
Analogue output 4–20 mA or 0–10 V
4 detection ranges with a measurement range of 20 mm to 1.3 m
microsonic Teach-in on pin 5
0.069 mm to 0.1 mm resolution
Temperature compensation
10–30 V operating voltage
LinkControl for configuration of sensors from a PC
