Абсолютный манометр LEO Ultimate

относительныйцифровойэлектронный

Product Description

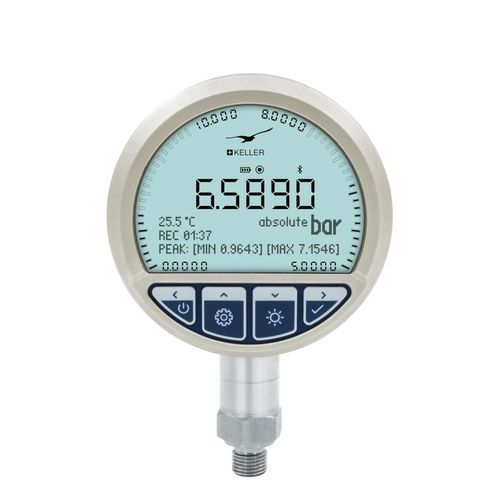

The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device. Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. This allows the device to be used flexibly in a variety of applications. The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods. Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. Measurement data can be visualised and documented using the PressureSuite software. The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.

Key features

• Piezoresistive measurement technology
• Integrated barometer for switching between absolute and relative pressure
• Multiple measurement modes: static and dynamic pressure profiles, leakage tests
• Data logger function for long-term recording
• Parameterisation and data retrieval via USB-C (USB 2.0) and Bluetooth BLE
• Robust metal housing with IP67 protection and easy-to-read display

Additional information

• High-precision reference instrument
• Advanced analysis functions

Caractéristiques / spécifications techniques

• Pressure ranges: -1...1 to 0…1000 bar / -15…15 bis 0…15000 psi
• Accuracy: ± 0,05 %FS (optional ± 0,01 %FS)
• Total error band: ± 0,05 %FS @ 0…50 °C
• Interfaces: USB 2.0 / Bluetooth BLE
• Special characteristics: High-precision reference instrument
• Housing protection: IP67
