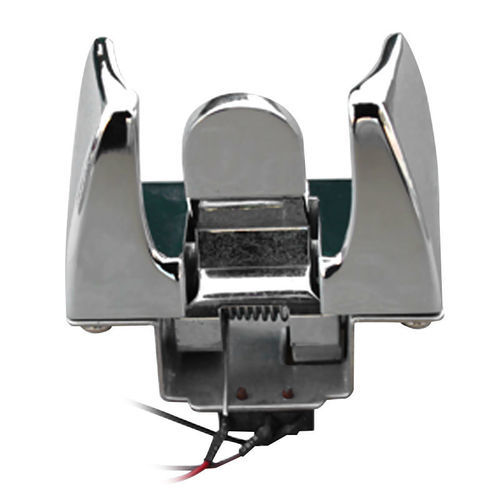

Крюк для телефона H2

из нержавеющей сталииз нержавеющей стали

Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.

Standard
GB/15279-94 Automatic telephone technology conditions; YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods

Conditions of using
Service Environment: -25~55℃
Relative humidity: 10%~95%
Atmospheric pressure: 96~108KPa

Main structure parts

• 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• Selects the high quality of universal switch, on resistance :0.1, cable length L: 150

Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M)

Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC 1600V/50Hz/1min, Leakage current: 0.5 mA). No flashover or breakdown phenomenon.

Caractéristiques / spécifications techniques

• Model: Kntech H2
• Size: not specified
• Material: Stainless steel
• Standards: GB/15279-94; YDN109-1998 (chapter 4)
• Service environment temperature: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108 KPa
• Main parts: zinc aluminum casting hook and hang tongue with chromium plating; universal switch
• Switch on-resistance: 0.1
• Cable length L: 150
• Insulation resistance: ≥50M (tested DC 250 V)
• Withstand voltage: AC 1600V/50Hz/1min, leakage current ≤0.5 mA; no flashover or breakdown
