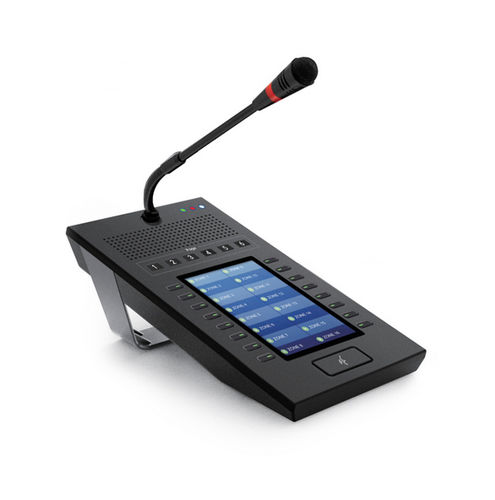

Терминал вызова PoE KNPA800mini

Ethernetдля системы оповещенияс сигнальной лампой

Product

• Name: Paging Microphone / PA Call Station
• Model: KNPA800mini
• Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
• Material: ABS (Acrylonitrile Butadiene Styrene)

Features

• Purpose-Built Design: Exclusively engineered for professional PA applications; EN 54-16 and ISO 7240-16 certified for safety compliance; CE marked and RoHS compliant; designed for 24x7 round-the-clock operation with energy-saving features during standby mode.
• User-Friendly Interface: 16 (8*2) free-programmable buttons; 3.5-inch TFT display; clear status indicators for power and communication; push-to-talk activation with visual confirmation; one button with security cover for emergency function; equipment 96 DSS keys (16*6 pages); integrated time-synchronization capability with GPS or local Observatory time servers.
• Superior Audio Management: Professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume control; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator with single-tone, 2-tone and 4-tone options; high-quality audio with frequency response of 100 Hz - 20 kHz and signal-to-noise ratio ≥ 60 dB.
• Flexible Broadcasting Capabilities: Selective zone, group-zone, and all-call paging options; pre-recorded message distribution with zone targeting; live announcements with exceptional clarity; configurable emergency alert buzzer with adjustable volume and instant override functions; advanced scheduling options for automated announcements including specific dates and repeated daily/weekly/monthly broadcasts; priority-based audio routing with emergency override functionality.
• Enterprise-Grade Reliability: Power over Ethernet (PoE) operation for simplified installation; dual Ethernet ports for network redundancy; no external power supply required; supports remote monitoring with visual and aural output level indicators; extended connectivity options with CAT5 cable for distances up to 100 m and Fiber + Pair cable for up to 3 km.

Specification (visual/spec image shown on page)
Specification details provided as images on the product page (paging-phone-specification-1.png).

Applications

• Designed for professional public address and paging systems, compatible with PA system servers/controllers and amplifiers as part of integrated PAGA/PA deployments.

Detailed Pictures
Multiple product/detail images available showing overall unit, size diagram and close-up views.

Caractéristiques / spécifications techniques

• Model: KNPA800mini
• Dimensions: 150 x 100 x 76 mm (L x W x H) excluding microphone
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Microphone: Professional gooseneck unidirectional microphone
• Buttons: 16 (8*2) free-programmable buttons; 96 DSS keys (16*6 pages)
• Display: 3.5-inch TFT
• Audio: Frequency response 100 Hz – 20 kHz; SNR ≥ 60 dB
• Inputs: 3.5 mm jack for wireless microphone input
• Chime: Built-in configurable chime generator (single/2-tone/4-tone)
• Network: PoE capable; dual Ethernet ports for redundancy
• Connectivity range: CAT5 up to 100 m; Fiber + Pair up to 3 km
• Compliance: EN 54-16; ISO 7240-16; CE marked; RoHS compliant
