Мембранный клапан F40

с пневматическим управлениемдля жидкостейдля гигиенических целей

Aseptic filling valve for complex filling applications

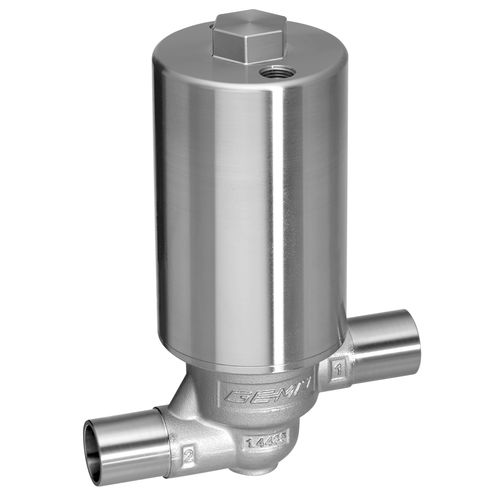

The 2/2-way filling valve GEMÜ F40 is designed for filling processes in aseptic and hygienic applications. Flow rates of up to 18,500 l/h are possible, depending on the design. The sealing concept of the valve is based on the GEMÜ PD technology, whereby the actuator is hermetically separated from the medium. All actuator parts (except the seals) are made from stainless steel. The “Normally closed” and “Normally open” control functions are available.

• Designed for filling processes with fast and frequent switching cycles
• Hermetic separation of the actuator from the medium thanks to excellent GEMÜ
• PD sealing technology for filling applications in the pharmaceutical and food industries
• Durable and very fast maintenance thanks to quick locking and innovative cartridge spare parts system
• Optionally available with oxygen and ATEX version
• FDA-compliant as standard and suitable for contact with foodstuffs in accordance with Regulation (EC) No. 1935/2004
• Can be integrated into P500 M multi-ports
