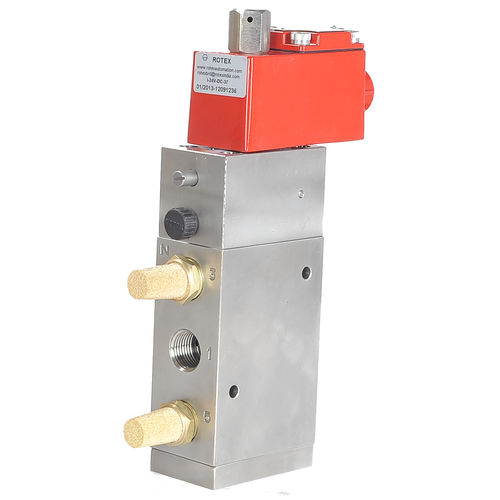

Электромагнитный клапан с контролируемым приводом 51440

5 каналовнормально закрытыйвоздух

5 Port 2 Position Internal Pilot Operated Inline Single Solenoid Poppet Valve Features: Bubble tight shut off. Mounts in any position. Vibration resistance to 9g. Suitable for high speed cycling. Speed up to 1200 cycles/ min. Life >20 million cycles. Model: Pressure Range 51440 2 - 10 Bar 51441 3 - 16 Bar Specifications: Type 5 Port, 2 Positions Orifice Size 6, 12,25 Mm Fluid / Ambient Temp - 20 °c To 80 °c Operating Voltage : A. C : D. C : 24, 110, 220, 240 (50 Hz / 60 Hz) 6, 12, 24, 48, 72, 110, 220 Power Consumption: Size 1 Coil: Size 2 Coil : 6 W 11 W Body Material Anodized Aluminium, Brass, Ss 316 Guide Assembly Ss 304 Plunger, Insert Ss 430 Shadow Ring Copper / Silver / None Spring Ss 302 Seat, Seals Nbr, Viton Fasteners Ss 304 Enclosure: General purpose flying lead / plug-in Weather-proof: flying lead & plug in type, terminal box as per is 13947 Explosion-proof with junction box as per is 2148 group i, iia, iib and iic Explosion-proof with junction box as per atex, inmetro, (in process) available Media: Air, inert gases, water, oil Applications: Operation of double acting cylinder / actuator.
