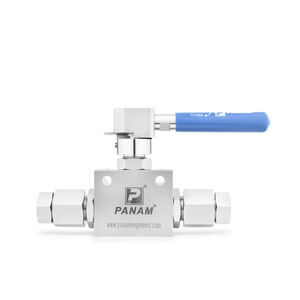

Игольчатый клапан PNV series

с рычагомнаружная резьба-внутренняя резьбавнутренняя резьба

Обзор
Игольчатые клапаны Panam серии HP из SS 316 доступны в пяти диапазонах давления (HP, HP1, HP2, HP3, HP6) для высоконапорных жидкостных и газовых систем. Варианты резьбы: NPT, MP Cone и HP Cone. Конфигурации корпуса: прямой, угловой, 3‑ходовой и коллектор с 2 стержнями; сменные седла для обслуживания.

Серии

• HP
• HP1
• HP2
• HP3
• HP6

Материал

• SS 316

Давление

• 10 000 psi (HP)
• 15 000 psi (HP1)
• 20 000 psi (HP2)
• 30 000 psi (HP3)
• 60 000 psi (HP6)

Типы резьбы / соединений

• NPT
• MP Cone
• HP Cone

Конфигурации

• Прямой
• Угловой
• 3‑ходовой (2 входа / 2 выхода)
• Коллектор на 2 стержня
• Сменное седло

Таблица продуктов (Part Number | Series | Pressure | Size | Connection Type | Configuration)
Part Number | Series | Pressure | Size | Connection Type | Configuration
PNV-HP-S-2NF | HP | 10,000 psi | 1/8" | NPT Female to Female | Straight
PNV-HP-S-4NF | HP | 10,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP-S-6NF | HP | 10,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP-S-8NF | HP | 10,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP-S-12NF | HP | 10,000 psi | 3/4" | NPT Female to Female | Straight
PNV-HP-S-16NF | HP | 10,000 psi | 1" | NPT Female to Female | Straight
PNV-HP-S-4NMF | HP | 10,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP-S-6NMF | HP | 10,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP-S-8NMF | HP | 10,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP-S-12NMF | HP | 10,000 psi | 3/4" | NPT Male x Female | Straight
PNV-HP-S-16NMF | HP | 10,000 psi | 1" | NPT Male x Female | Straight
PNV-HP-S-4NF-A | HP | 10,000 psi | 1/4" | NPT Female to Female | Angle Type
PNV-HP-S-6NF-A | HP | 10,000 psi | 3/8" | NPT Female to Female | Angle Type
PNV-HP-S-8NF-A | HP | 10,000 psi | 1/2" | NPT Female to Female | Angle Type
PNV-HP-S-12NF-A | HP | 10,000 psi | 3/4" | NPT Female to Female | Angle Type
PNV-HP-S-16NF-A | HP | 10,000 psi | 1" | NPT Female to Female | Angle Type
PNV-HP-S-4NMF-A | HP | 10,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP-S-6NMF-A | HP | 10,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP-S-8NMF-A | HP | 10,000 psi | 1/2" | NPT Male x Female | Angle Type
PNV-HP-S-12NMF-A | HP | 10,000 psi | 3/4" | NPT Male x Female | Angle Type
PNV-HP-S-16NMF-A | HP | 10,000 psi | 1" | NPT Male x Female | Angle Type
PNV-HP1-S-4NF | HP1 | 15,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP1-S-6NF | HP1 | 15,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP1-S-8NF | HP1 | 15,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP1-S-4NMF | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP1-S-6NMF | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP1-S-8NMF | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP1-S-4NMF-A | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP1-S-6NMF-A | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP1-S-8NMF-A | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Angle Type

Примечания
В семействе HP доступно 103 конфигурации, охватывающие несколько размеров, типы соединений (NPT, MP Cone, HP Cone), конфигурации корпуса (прямой, угловой), варианты мультипортов (3‑ходовые) и коллекторов, а также сменные седла. В таблице выше приведены примеры артикулов и конфигураций.
